KBU805G

Overview

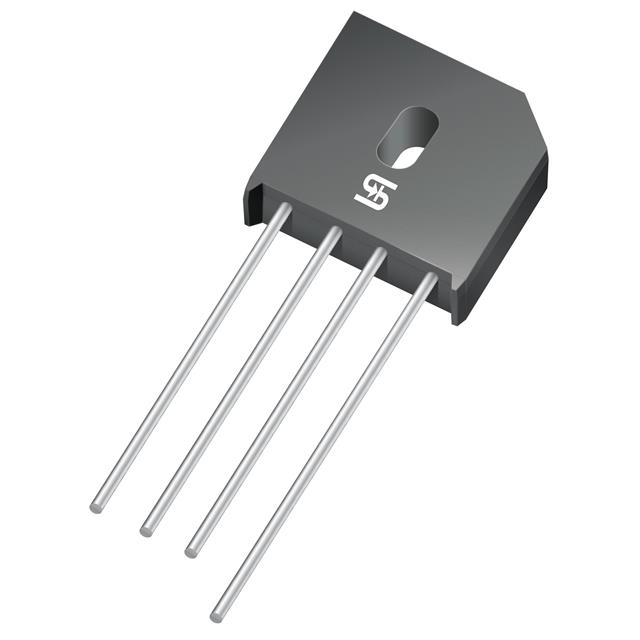

The KBU805G is a single-phase bridge rectifier manufactured by Taiwan Semiconductor, designed for general-purpose power supply applications. It features an average forward current rating of 8A and a peak repetitive reverse voltage (Vrrm) of 600V. The device utilizes a KBU molded plastic package with four terminals for through-hole mounting. Key electrical characteristics include a maximum non-repetitive peak forward surge current (Ifsm) of 200A and a typical reverse leakage current (Ir) of less than 5μA at rated voltage. The component operates within a temperature range of -55°C to +150°C junction temperature, ensuring reliability in demanding environments.

Feature Summary

• High case dielectric strength suitable for printed circuit board mounting
• Green compound construction with UL flammability classification 94V-0
• Guaranteed high-temperature soldering capability up to 260°C
• Lead-free terminals compliant with MIL-STD-202 solderability standards

Applications

• General-purpose AC to DC conversion in power supplies
• Battery charging circuits requiring robust surge handling
• Industrial control systems utilizing standard bridge rectification

Procurement Notes

Verify the specific suffix 'G' indicates green compound packaging when sourcing replacements. Confirm that the ordering part number matches the exact voltage and current ratings required for the target application. Ensure compliance with RoHS directives if environmental regulations apply to the final assembly process.

Selection Notes

Select this component where an 8A continuous current and 600V blocking voltage are sufficient for the load requirements. Consider the KBU package dimensions for PCB layout constraints. Evaluate thermal management needs based on the 150°C maximum junction temperature limit under expected operating conditions.

Part Context

This device belongs to the KBU8 series of single-phase bridge rectifiers from Taiwan Semiconductor. The series offers various voltage ratings while maintaining consistent mechanical and electrical performance profiles across different models. The KBU805G specifically addresses applications needing moderate current capacity with high voltage resilience.

Replacement Considerations

Direct substitutes must match the 8A current rating, 600V Vrrm, and KBU package form factor. Verify pinout compatibility and thermal characteristics before implementation.
