KC3225A25.0000C30E00

Oscillators Overview

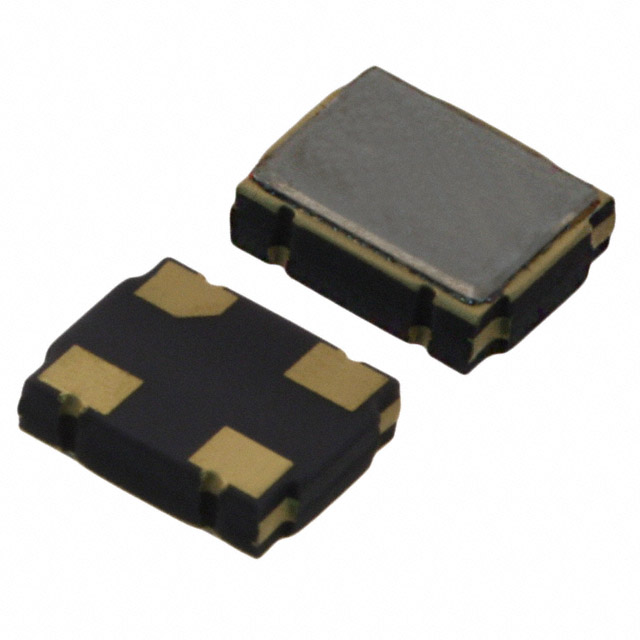

The KC3225A25.0000C30E00 is a standard clock oscillator manufactured by KYOCERA AVX, operating at a frequency of 25 MHz with CMOS output format. It features a 3.2 mm x 2.5 mm surface mount package and supports a supply voltage range of 2.97 V to 3.63 V. The device offers a frequency stability of 50 ppm and includes standby functionality. Operating temperatures range from -10°C to +70°C, with a load capacitance of 15 pF.

Oscillators Feature Summary

• CMOS output interface for direct logic compatibility
• Standby mode capability for power management
• Small ceramic SMD package design

Oscillators Applications

• General purpose digital circuit timing
• Microprocessor clock generation
• Communication equipment synchronization

Oscillators Procurement Notes

Verify component availability as this specific part number may be discontinued or obsolete according to distributor records. Confirm current manufacturing status directly with the manufacturer before procurement planning. Ensure replacement strategies are in place if production support has ended. Check for updated datasheets reflecting final specifications.

Oscillators Selection Notes

Select this component when a 25 MHz CMOS clock signal is required within a 3.2x2.5mm footprint. Verify that the 50 ppm stability meets system timing requirements. Ensure the operating temperature range aligns with the application environment. Confirm voltage compatibility with the 2.97V to 3.63V supply rail.

Oscillators Part Context

This oscillator belongs to the KC3225A series, designed for space-constrained applications requiring reliable timing signals. The series utilizes seam-welded ceramic packages for durability. The KC3225A25.0000C30E00 specifically targets 25 MHz applications with standard CMOS outputs.

Oscillators Replacement Considerations

Distributor listings indicate this product is no longer manufactured. Identify equivalent oscillators from the same family or alternative manufacturers offering identical 25 MHz CMOS specifications in a 3.2x2.5mm package.
