KP226K2809XTMA1

Pressure Sensors Transducers Overview

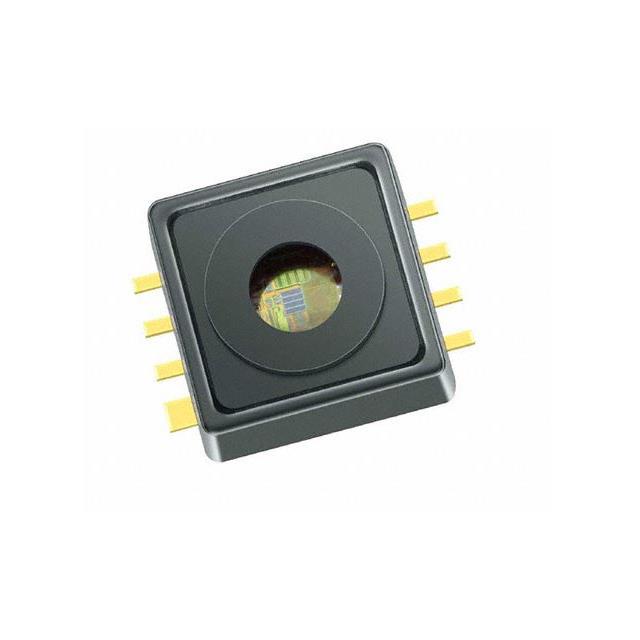

The KP226K2809XTMA1 is an integrated absolute pressure sensor manufactured by Infineon Technologies, designed for board-mount applications. It operates within a working pressure range of 40 kPa to 115 kPa and delivers analog output signals. The device features high accuracy with a resolution of 1 kPa and is qualified under the AEC-Q100 automotive standard. It functions reliably across a temperature range of -40°C to +125°C using a 5 V supply voltage. The component is housed in a compact DSOF-8 package, suitable for surface mount technology.

Pressure Sensors Transducers Feature Summary

• Integrated absolute pressure sensing capability with analog signal output
• Automotive-grade qualification compliant with AEC-Q100 standards
• High measurement accuracy specified at 1 kPa resolution
• Robust thermal performance supporting operation up to 125°C

Pressure Sensors Transducers Applications

• Automotive tire pressure monitoring systems (TPMS)
• Industrial process control pressure measurement
• HVAC system pressure monitoring
• Medical device pneumatic pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the complete ordering part number including the XTMA1 suffix to ensure correct packaging and variant selection. Confirm that the required AEC-Q100 qualification aligns with specific automotive project requirements. Check current availability status as production cycles may vary. Ensure compatibility with the target PCB footprint for the DSOF-8 package before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this component when an absolute pressure sensor with automotive reliability is required. The 40-115 kPa range suits low-pressure applications such as tire monitoring. Consider the analog output interface for direct ADC connection. Verify that the 5 V operating voltage matches the system power architecture. Ensure the DSOF-8 package dimensions fit the mechanical constraints of the design.

Pressure Sensors Transducers Part Context

This part belongs to Infineon's KP series of integrated pressure sensors. These components combine piezoresistive sensing elements with signal conditioning circuitry on a single silicon die. The series offers various pressure ranges and output types to support diverse industrial and automotive sensing needs while maintaining small form factors.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Infineon cross-reference tools or authorized distributors for verified alternative components that match the electrical specifications and package outline.
