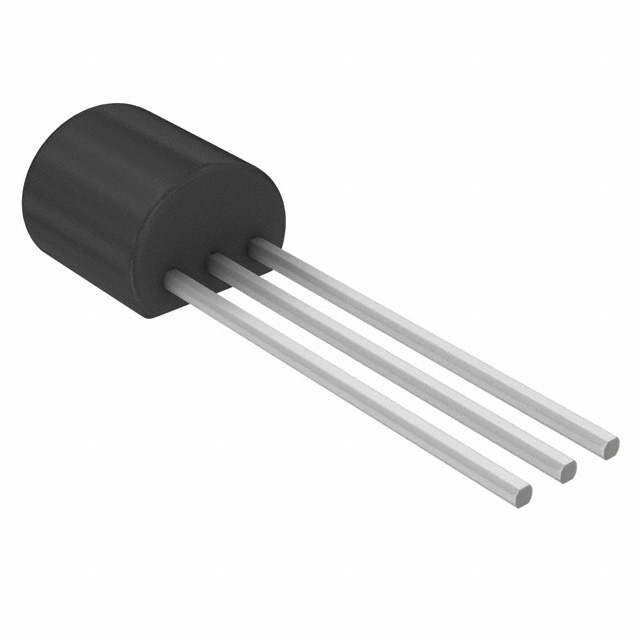

KSA1013OBU

Single Bipolar Transistors Overview

The KSA1013OBU is a PNP epitaxial silicon transistor manufactured by onsemi, housed in a TO-92 package. It supports a maximum collector current of 1 A and a collector-emitter voltage of 160 V. The device features a power dissipation rating of 900 mW and a gain-bandwidth product of 50 MHz. Operating temperatures range from -55 °C to +150 °C. DC current gain (hFE) ranges from 60 to 320.

Single Bipolar Transistors Feature Summary

• PNP epitaxial silicon construction for reliable switching performance
• High voltage capability suitable for deflection output stages
• Through-hole TO-92 packaging for standard board mounting

Single Bipolar Transistors Applications

• Color TV audio output stages
• Color TV vertical deflection output circuits

Single Bipolar Transistors Procurement Notes

Verify the specific suffix OBU against official datasheets to confirm packaging details. Confirm RoHS compliance status through manufacturer documentation. Check availability as distribution channels may vary. Ensure the component meets required thermal and electrical specifications for the target application environment before integration.

Single Bipolar Transistors Selection Notes

Select this component for applications requiring high-voltage PNP switching with moderate current handling. Compare hFE ranges and saturation voltages against circuit requirements. Consider the TO-92 package constraints for thermal management. Verify compatibility with existing design parameters regarding voltage headroom and power dissipation limits.

Single Bipolar Transistors Part Context

This part belongs to the KSA1013 series of PNP transistors. It is designed for general-purpose switching and amplification tasks. The series is commonly used in consumer electronics, particularly television sets. The component represents a standard discrete semiconductor solution for analog and digital control circuits.

Single Bipolar Transistors Replacement Considerations

Check for direct equivalents such as the KSA1013YTA or generic A1013 variants. Verify pinout compatibility and electrical parameter overlaps. Ensure substitute parts meet the same voltage and current ratings. Consult official substitution guides for confirmed cross-references.
