L6141309

Pressure Sensors Transducers Overview

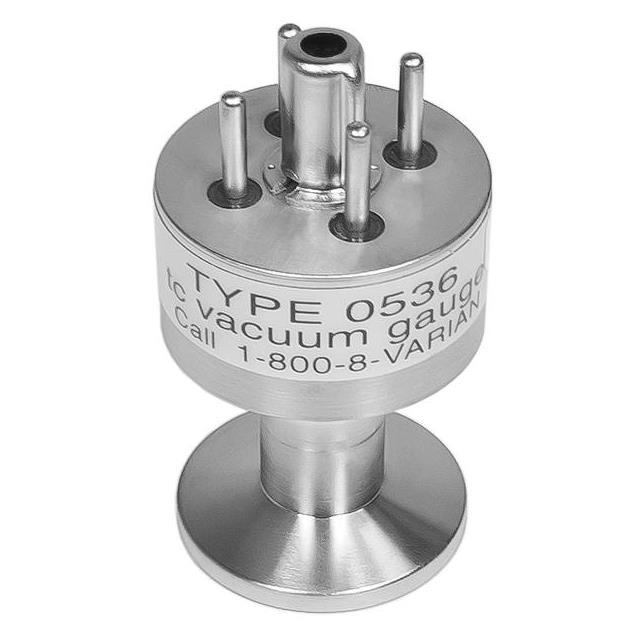

The L6141309 is a thermocouple gauge tube manufactured by DigiVac, designed for vacuum pressure measurement applications. This component features a stainless steel construction and utilizes an NW25 KF flange interface for secure mounting. The specific model designation includes the number 536, which typically corresponds to the gauge's operational range or calibration standard within the DigiVac product line. As a replacement part for Agilent systems, it serves as a critical sensing element in vacuum gauges, converting thermal conductivity changes into measurable electrical signals proportional to pressure levels.

Pressure Sensors Transducers Feature Summary

• Constructed from stainless steel for durability in vacuum environments
• Features an NW25 KF flange connection for standardized integration
• Designed as a thermocouple sensor for precise vacuum measurement

Pressure Sensors Transducers Applications

• Replacement sensor for DigiVac Bullseye Precision Vacuum Gauges
• Integration into vacuum systems requiring NW25 KF interfaces
• Maintenance of Agilent-compatible vacuum measurement equipment

Pressure Sensors Transducers Procurement Notes

Verify the exact flange type and electrical compatibility before procurement. Confirm that the NW25 KF interface matches your existing system requirements. Ensure the replacement part is sourced from authorized distributors to guarantee authenticity and performance specifications. Cross-reference the part number with official DigiVac documentation to confirm suitability for your specific gauge model.

Pressure Sensors Transducers Selection Notes

Select this component when a direct replacement for an Agilent 536 KF25 sensor is required. It is suitable for applications utilizing thermocouple-based vacuum measurement principles. Ensure the host gauge supports the specific output characteristics of this thermocouple tube. Verify physical dimensions and flange standards to ensure mechanical fit within the existing vacuum chamber or gauge assembly.

Pressure Sensors Transducers Part Context

This part belongs to the DigiVac family of vacuum measurement components. It is specifically engineered as a replacement sensor for precision vacuum gauges. The component replaces older Agilent-branded sensors, maintaining compatibility with DigiVac hardware. It represents a specialized industrial component focused on accurate low-pressure measurement rather than general-purpose sensing.

Pressure Sensors Transducers Replacement Considerations

This part serves as a direct replacement for Agilent 536 KF25 sensors. Ensure the host gauge electronics are compatible with the thermocouple output of this specific tube. No other substitute part numbers are publicly confirmed for this specific configuration.
