Product Detailed Parameters

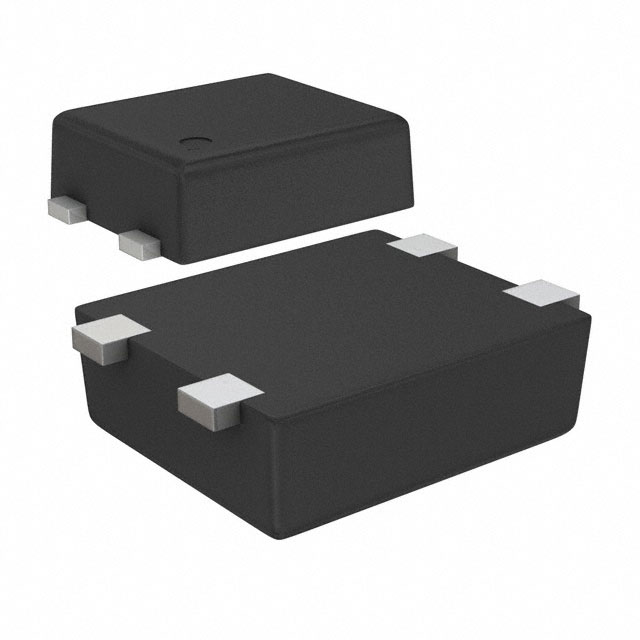

- Description：BRIDGE RECT 1P 1KV 1A TDFN5564-4
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：1:00 AM
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 1 A
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：4-SMD, Flat Leads
- Supplier Device Package：T-DFN5564-4
- Grade：-
- Qualification：-
Download product information
Overview
The LBS10-13 is a 1.0A surface mount glass passivated bridge rectifier manufactured by Diodes Incorporated. It features a peak repetitive reverse voltage (VRRM) of 1000V and an average rectified output current (IO) of 1.0A. The maximum forward voltage drop (VF) is 1.1V at 1A, with a maximum leakage current (IR) of 5µA at 25°C. The device operates within a temperature range of -55°C to +150°C and utilizes a T-DFN5564-4 package.
Feature Summary
- Glass passivated die construction for high reliability
- Ultra-thin profile suitable for space-constrained applications
- Ideally suited for automated assembly processes
Applications
- AC to DC bridge full wave rectification
- LED lighting systems
- Battery chargers
- Home appliances
- Telecommunication equipment
Procurement Notes
Verify the specific ordering suffix '-13' corresponds to the commercial grade tape and reel packaging containing 5,000 units per reel. Confirm compliance with RoHS directives and halogen-free requirements as defined in the manufacturer's documentation before finalizing procurement specifications.
Selection Notes
Select this component for designs requiring a 1000V rating and 1.0A continuous current capability in a compact footprint. Ensure thermal management accounts for the junction-to-ambient resistance of 52°C/W when operating near maximum ratings. Verify that the T-DFN5564-4 package dimensions fit the available PCB area.
Part Context
This part belongs to the LBS series of surface mount bridge rectifiers from Diodes Incorporated. It serves as a compact alternative to traditional through-hole bridge rectifiers, offering similar electrical performance in a significantly smaller form factor designed for modern automated surface mount technology lines.
Replacement Considerations
Check datasheets for other LBS series variants such as LBS4 or LBS6 if lower voltage ratings are acceptable. Verify pinout compatibility and physical dimensions against existing board layouts before substituting with components from different manufacturers.
