LCMXO2-1200HC-6SG32I

Field Programmable Gate Array Overview

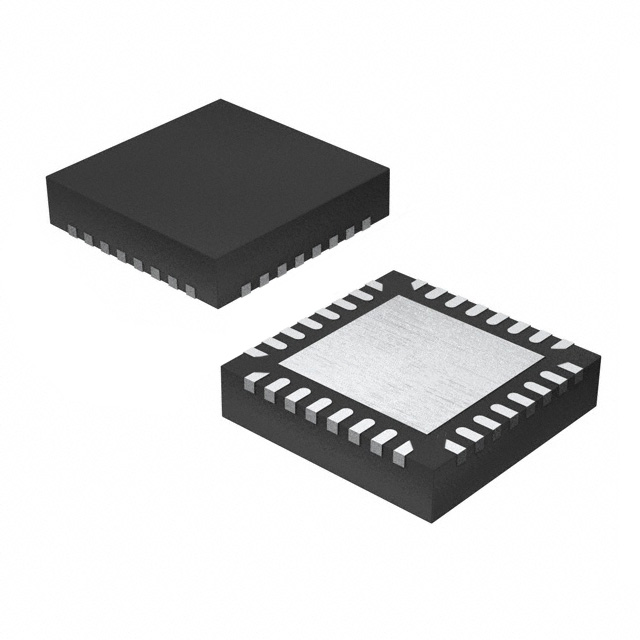

The LCMXO2-1200HC-6SG32I is a high-performance Field Programmable Gate Array (FPGA) from the Lattice MachXO2 series, manufactured by Lattice Semiconductor Corporation. It features 1280 logic elements and 640 Adaptive Logic Modules (ALMs), with 160 Logic Array Blocks (LABs). The device includes 64 kbit of embedded memory and supports 21 user I/O pins. Operating voltages range from 2.375 V to 3.6 V, supporting 2.5 V/3.3 V standards. It achieves a maximum operating frequency of 388 MHz with a propagation delay of 6.72 ns. The component operates within an industrial temperature range of -40°C to +100°C and is housed in a QFN-32 package.

Field Programmable Gate Array Feature Summary

• Integrates hardened SPI, I²C controllers, and timers/counters for simplified system design
• Utilizes 65nm non-volatile embedded flash technology for instant-on operation without external configuration chips
• Supports dynamic I/O power management and programmable low-swing differential I/O
• Enables in-system reprogramming via JTAG or SPI interfaces

Field Programmable Gate Array Applications

• Industrial sensor signal processing and protocol conversion
• Programmable Logic Controller (PLC) logic execution
• Industrial IoT gateway interface expansion
• Low-power portable electronic devices requiring instant startup

Field Programmable Gate Array Procurement Notes

Verify the specific suffix '6SG32I' against official Lattice documentation to confirm the speed grade (-6), package type (QFN-32), and industrial temperature rating (-I). Ensure compatibility with required voltage levels (2.5V/3.3V) and check for moisture sensitivity handling requirements during assembly. Confirm that the intended application does not require automotive qualification, as this part is not specified for such standards.

Field Programmable Gate Array Selection Notes

Select this model when a balance of moderate logic density (1280 LEs) and high performance (388 MHz) is required in a compact QFN-32 footprint. It is suitable for designs needing integrated peripheral controllers to reduce bill-of-materials count. Compare against the LCMXO2-1200ZE variant if lower power consumption at reduced speeds (150 MHz) is prioritized over performance.

Field Programmable Gate Array Part Context

This component belongs to the Lattice MachXO2 family, which bridges the gap between complex CPLDs and FPGAs. The MachXO2 series is characterized by its use of embedded flash technology, eliminating the need for external configuration memory. This family offers a cost-effective solution for applications requiring frequent updates and small form factors.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package and logic density include other speed grades of the LCMXO2-1200HC series, such as LCMXO2-1200HC-5SG32I or LCMXO2-1200HC-4SG32I, provided timing constraints allow for slower speeds.
