LCMXO3LF-9400C-5BG484I

Field Programmable Gate Array Overview

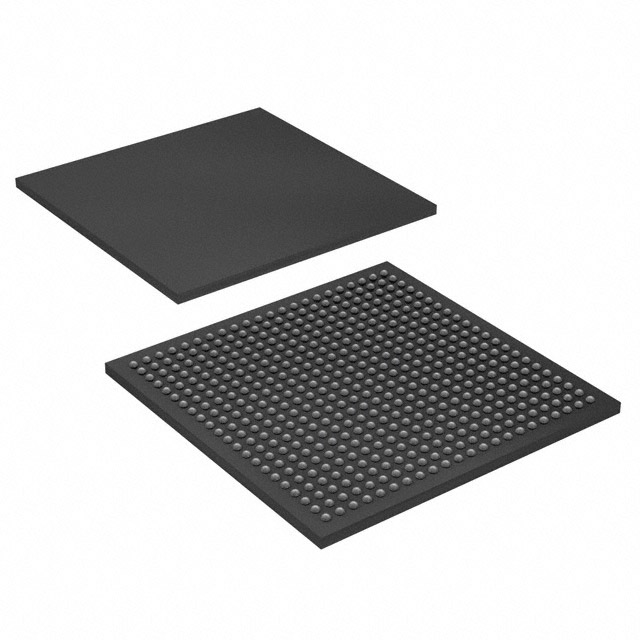

The LCMXO3LF-9400C-5BG484I is a Field Programmable Gate Array from the Lattice MachXO3LF family. It features 9400 logic elements and 4700 Adaptive Logic Modules. The device includes 432 kbit of embedded block RAM and supports up to 335 I/Os. Operating voltage ranges from 2.375 V to 3.465 V, with a maximum data rate of 900 Mb/s and operating frequency of 400 MHz. It is housed in a 484-CABGA package and operates within a commercial temperature range of 0°C to +85°C.

Field Programmable Gate Array Feature Summary

• Ultra-low density architecture optimized for cost-sensitive applications
• Integrated hardware management capabilities via L-ASC10 support
• Supports high-speed serial interfaces including MIPI and PCIe

Field Programmable Gate Array Applications

• Industrial control systems requiring low power consumption
• Consumer electronics interface prototyping
• Hardware management and sensor monitoring designs

Field Programmable Gate Array Procurement Notes

Verify the suffix 'I' against official documentation, as standard datasheets typically list 'C' for commercial grade. Confirm moisture sensitivity level and packaging type directly with the manufacturer or authorized distributors to ensure compliance with assembly requirements.

Field Programmable Gate Array Selection Notes

Select this component for projects requiring moderate logic capacity with low static power. Compare against the LCMXO3L series if industrial temperature ratings (-40°C to +100°C) are required instead of the commercial range specified here.

Field Programmable Gate Array Part Context

This part belongs to the MachXO3LF family, designed as an ultra-low density FPGA solution. It serves as a successor to complex programmable logic devices, offering higher performance and flexibility while maintaining low power consumption suitable for battery-operated devices.

Field Programmable Gate Array Replacement Considerations

LCMXO3LF-9400C-5BG484C: Identical logic and memory resources with a different package marking or minor revision. LCMXO3L-9400E-6BG484I: Industrial temperature variant with similar specifications but different speed grade.
