LFE5U-12F-6MG285C

Field Programmable Gate Array Overview

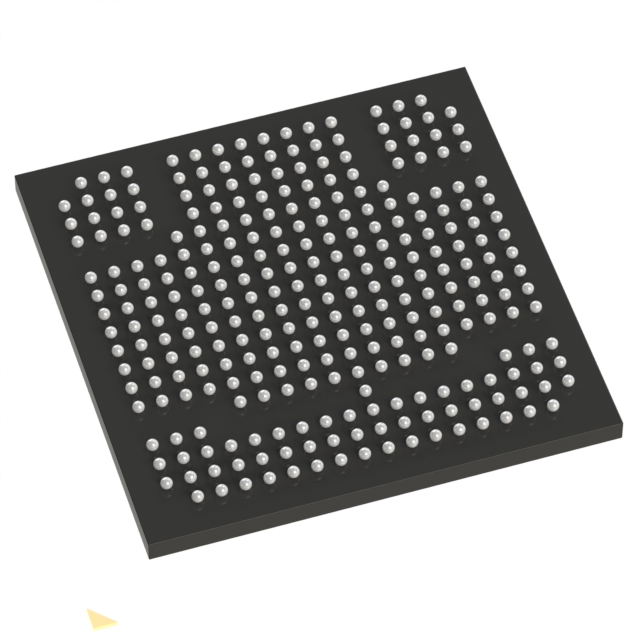

The LFE5U-12F-6MG285C is a Field Programmable Gate Array from the Lattice ECP5 family, manufactured by Lattice Semiconductor. It features 12,000 logic elements and 6,000 Adaptive Logic Modules (ALMs). The device includes 576 kbit of embedded block RAM and 97 kbit of distributed RAM. It supports up to 118 I/Os and operates with a core voltage range of 1.045 V to 1.155 V. The maximum operating frequency is 312 MHz, with data rates up to 3.2 Gb/s. It functions within a temperature range of -40°C to +100°C and is housed in a CSFBGA-285 package.

Field Programmable Gate Array Feature Summary

• Low-power architecture optimized for energy efficiency in compact designs
• Integrated high-speed SERDES channels supporting multiple communication protocols
• Robust security features including AES encryption and anti-tamper mechanisms

Field Programmable Gate Array Applications

• Industrial automation and control systems
• Automotive infotainment and sensor interfaces
• Telecommunications infrastructure equipment

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C' against official Lattice documentation to confirm commercial grade temperature rating and availability. Ensure compatibility with required PCB footprint and reflow profiles for the CSFBGA-285 package. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Field Programmable Gate Array Selection Notes

Select this model when low power consumption and moderate logic density are required. Compare with higher-density ECP5 variants if more ALMs or memory are needed. Verify that the 285-ball package fits the design constraints. Check if the commercial temperature range meets environmental requirements.

Field Programmable Gate Array Part Context

This component belongs to the Lattice ECP5 Ultra series, designed for low-power applications. It offers a balance of performance and power efficiency, suitable for space-constrained environments. The series is known for its robust security features and high-speed serial connectivity options.

Field Programmable Gate Array Replacement Considerations

Check Lattice's official obsolescence notices for direct replacements. Consider other ECP5 devices with similar logic counts and package types. Verify pin-to-pin compatibility before substitution.
