Product Detailed Parameters
- Description：XTAL OSC OCXO 10.0000MHZ HCMOS
- Series：IQCM-110
- Mfr：IQD Frequency Products
- Package：Bulk
- Base Resonator：Crystal
- Type：OCXO (GPSDO)
- Frequency：10 MHz
- Function：-
- Output：HCMOS
- Voltage - Supply：5V
- Frequency Stability：-
- Absolute Pull Range (APR)：-
- Operating Temperature：-20°C ~ 75°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：1A
- Ratings：-
- Mounting Type：Through Hole
- Package / Case：Module
- Size / Dimension：2.362" L x 2.362" W (60.00mm x 60.00mm)
- Height - Seated (Max)：0.532" (13.50mm)
Download product information
Overview

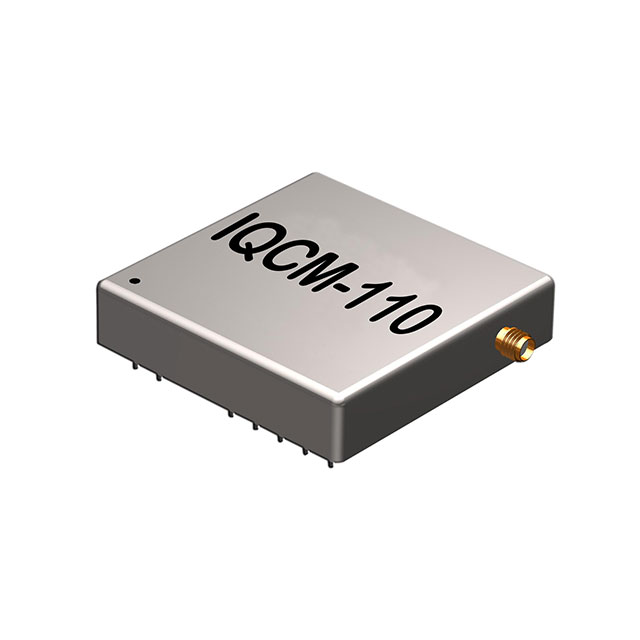

The LFOCXO065760BULK is a hermetically sealed oven-controlled crystal oscillator (OCXO) from the IQCM-110 series, manufactured by IQD Frequency Products. It operates at a nominal frequency of 10 MHz with an HCMOS output format. The device requires a 5 V supply voltage and features a through-hole mounting style within a 60 mm x 60 mm metal module package. It supports an operating temperature range of -40°C to +85°C and offers high stability specifications suitable for precision timing applications.
Feature Summary
- Hermetically sealed metal enclosure ensuring environmental protection
- Oven-controlled operation for superior frequency stability
- HCMOS logic output compatibility
Applications
- Precision test and measurement equipment
- Telecommunications base stations
- Navigation and GPS reference systems
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels due to potential availability constraints. Confirm specific lot codes and calibration certificates if required for critical infrastructure projects. Ensure proper handling procedures are followed given the hermetic seal integrity requirements during installation.
Selection Notes
Select this OCXO when high long-term stability and low phase noise are prioritized over size constraints. Compare against TCXO alternatives if space limitations exist, noting that OCXOs provide superior performance in varying thermal environments. Validate power consumption requirements against system capabilities due to oven heating elements.
Part Context
This part belongs to the IQCM-110 series of OCXOs designed for demanding industrial and military applications. It represents a standard solution for stable clock generation where quartz crystal drift must be minimized through active temperature control mechanisms within a robust mechanical housing.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other IQD OCXO series such as LFOCXO063801 for similar form factors, but verify electrical pinouts and stability specifications carefully before substitution.
