Product Detailed Parameters

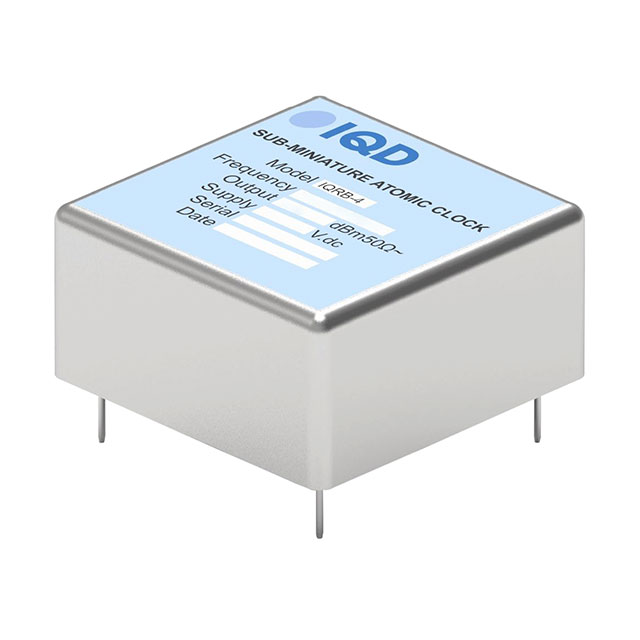

- Description：IQRB-4 RUBIDIUM OSCILLATOR 5V
- Series：IQRB-4
- Mfr：IQD Frequency Products
- Package：Bulk
- Base Resonator：Rubidium
- Type：Atomic
- Frequency：10 MHz
- Function：-
- Output：CMOS
- Voltage - Supply：5V
- Frequency Stability：±0.8ppb
- Absolute Pull Range (APR)：±3ppb
- Operating Temperature：-10°C ~ 60°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：1.2A
- Ratings：-
- Mounting Type：Through Hole
- Package / Case：Module
- Size / Dimension：2.000" L x 2.000" W (50.80mm x 50.80mm)
- Height - Seated (Max)：0.984" (25.00mm)
Download product information
Overview
The LFRBXO083765BULK is a professional atomic rubidium oscillator from the IQRB-4 series, manufactured by IQD Frequency Products. It operates at a nominal frequency of 10 MHz and utilizes an atomic CMOS output configuration. The device is designed for applications requiring extremely precise frequency stability and timing references. It functions with a supply voltage of 5V and features low power consumption, making it suitable for portable devices. The component is housed in a bulk package format.
Feature Summary
- Provides extremely precise frequency stability and timing references through atomic rubidium technology
- Features low power consumption suitable for portable device applications
- Utilizes atomic CMOS output configuration for signal integrity
Applications
- Applications requiring extremely precise frequency stability
- Timing reference systems
- Portable devices due to low power consumption
Procurement Notes
Verify current product status as active or end-of-life through official manufacturer channels. Confirm specific electrical parameters and environmental compliance details via the latest datasheet. Ensure compatibility with system voltage requirements and interface standards before integration.
Selection Notes
Select this component when high precision timing is critical. Consider the 10 MHz frequency and 5V supply constraints. Evaluate space and power limitations against its atomic oscillator benefits. Compare against standard quartz alternatives if extreme stability is not required.
Part Context
This part belongs to the IQRB-4 series of rubidium oscillators. It represents a specialized category of clock sources offering superior stability compared to standard crystal oscillators. The series targets industrial and professional markets demanding long-term frequency accuracy.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements or cross-reference options.
