Product Detailed Parameters

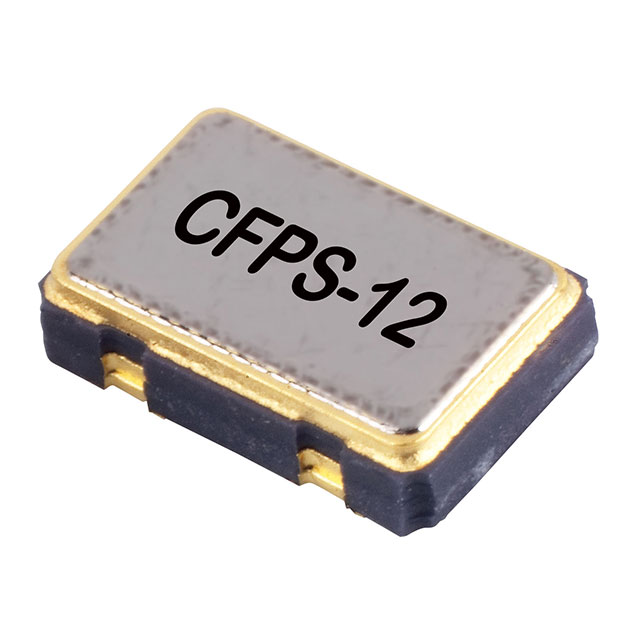

- Description：XTAL OSC XO 4.0000MHZ CMOS SMD
- Series：CFPS-12
- Mfr：IQD Frequency Products
- Package：Tape & Reel (TR)
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：4 MHz
- Function：Standby (Power Down)
- Output：CMOS
- Voltage - Supply：5V
- Frequency Stability：±50ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：45mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.051" (1.30mm)
Download product information
Overview
The LFSPXO027824REEL is a standard clock oscillator manufactured by IQD Frequency Products, designed for surface-mount technology applications. It operates at a nominal frequency of 4 MHz and utilizes CMOS output format. The component is supplied in a reel package configuration, facilitating automated assembly processes. This specific part number represents the reel-packaged variant of the LFSPXO series, ensuring consistent supply for high-volume manufacturing requirements while maintaining the electrical characteristics defined by the manufacturer's specifications.
Feature Summary
- CMOS output signal format
- Surface-mount device (SMD) construction
- Reel packaging configuration
Applications
- General purpose clock generation
- Digital circuit timing references
- Embedded system clock sources
Procurement Notes
Verify the exact operating voltage and load capacitance requirements against the official datasheet before integration, as these parameters are critical for circuit compatibility. Confirm that the reel packaging specification aligns with your automated placement equipment capabilities. Ensure that the CMOS output drive strength meets the input requirements of the downstream logic components to guarantee signal integrity within the design.
Selection Notes
Select this component when a 4 MHz CMOS clock source is required in a surface-mount form factor. Consider the specific voltage range and stability needs of the application to ensure compatibility with other system components. Evaluate the thermal performance and environmental ratings to confirm suitability for the intended operational conditions and mechanical constraints of the final product design.
Part Context
This part belongs to the LFSPXO series of standard oscillators from IQD Frequency Products. The series offers various frequencies and packages to support diverse electronic design needs. The REEL suffix indicates bulk packaging for automated manufacturing, distinguishing it from tape-and-reel or single-unit packaging options available within the same product family.
