LFSPXO083346

Overview

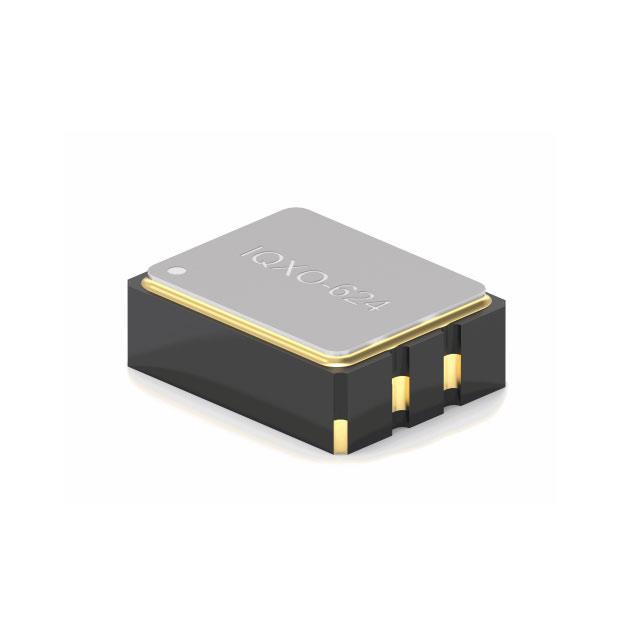

The LFSPXO083346 is a standard clock oscillator manufactured by IQD Frequency Products, operating at a nominal frequency of 156.25 MHz. It utilizes an LVPECL output format and requires a supply voltage range of 3.135 V to 3.63 V. The device features a frequency stability of 50 PPM and includes enable/disable functionality. It is housed in a compact 6-SMD, no-lead package with dimensions of 2.0 mm x 1.6 mm x 0.95 mm. The component supports surface mount installation and operates within a temperature range of -40°C to +85°C.

Feature Summary

• Provides stable high-frequency clock signals via LVPECL output interface
• Integrates enable and disable control functions for power management
• Utilizes crystal resonator technology for precise frequency generation
• Designed for surface mount assembly in compact electronic systems

Applications

• High-speed data communication interfaces requiring precise timing
• Network equipment and telecommunications infrastructure
• Digital signal processing systems needing low jitter clocks
• Consumer electronics with strict size constraints

Procurement Notes

Verify the specific ordering suffix to confirm the exact output format, as variations may exist between LVPECL and other logic families. Ensure the selected variant matches the required supply voltage and enable/disable pin configuration for your circuit design. Cross-reference the package dimensions against your PCB footprint library to guarantee mechanical compatibility during assembly.

Selection Notes

Select this component when an LVPECL output is specifically required for high-speed applications. Consider the 50 PPM stability requirement against system timing budgets. Evaluate the 6-SMD package size against available board space. Confirm that the operating temperature range meets environmental conditions. Check if the enable/disable feature aligns with system power sequencing requirements.

Part Context

This part belongs to the IQXO-624 series of standard oscillators from IQD Frequency Products. The series focuses on providing reliable clock solutions in small form factors. These oscillators are designed for modern electronics where space and performance are critical. The LFSPXO083346 represents a specific frequency option within this broader product family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers. Check electrical parameters such as output voltage levels and current consumption carefully.
