LIF-MD6000-6UMG64ITR

Field Programmable Gate Array Overview

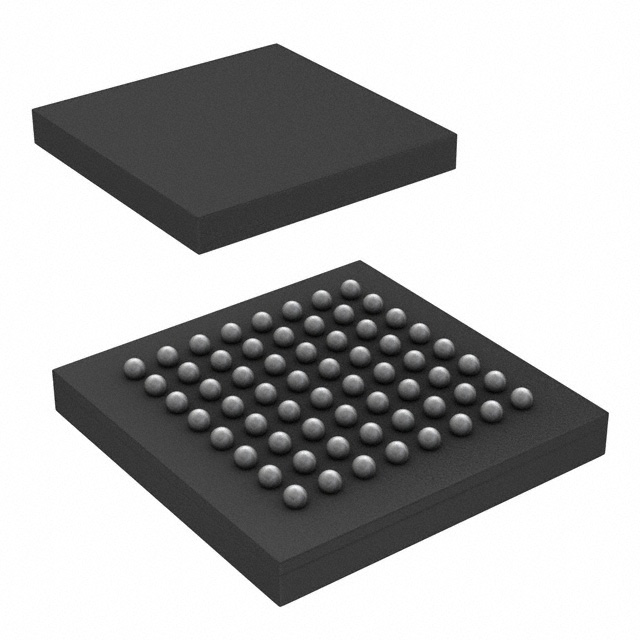

The LIF-MD6000-6UMG64ITR is a CrossLink FPGA featuring 5936 logic units and 180 kbits of embedded memory. It integrates two MIPI D-PHY transceivers supporting up to 12 Gbps for video bridging. The device operates within a voltage range of 1.14V to 1.26V and supports industrial temperatures from -40°C to 100°C TJ. Packaged in a 64-UCFBGA (3.5x3.5 mm) with a 0.4 mm pitch, it includes one GPLL and one D-PHY PLL. Total RAM bits amount to 184320, with 29 available I/O pins.

Field Programmable Gate Array Feature Summary

• Integrates dual MIPI D-PHY transceivers for high-speed video interface bridging
• Features non-volatile configuration memory for single-chip operation
• Supports flexible programming via I2C/SPI interfaces

Field Programmable Gate Array Applications

• MIPI D-PHY to LVDS/SLVS bridge implementations
• Camera module interfacing and display control
• Portable consumer electronics requiring low power consumption

Field Programmable Gate Array Procurement Notes

Verify the specific suffix IT against official datasheets to confirm temperature grade and package details. Confirm manufacturing lot dates and RoHS compliance status prior to integration. Ensure ESD handling protocols are followed during assembly. Validate supply chain authenticity through authorized distributors only.

Field Programmable Gate Array Selection Notes

Select this model when dual MIPI D-PHY reception is required in a compact footprint. Compare pin counts and memory resources against the 6JMG80I variant if larger packages are acceptable. Verify that the 64-pin UCFBGA fits the target PCB layout constraints.

Field Programmable Gate Array Part Context

This component belongs to the Lattice CrossLink family, designed specifically for video bridging applications. It complements other variants like the LIF-MD6000-6JMG80I by offering a smaller form factor suitable for space-constrained portable devices while maintaining similar logical capacity.

Field Programmable Gate Array Replacement Considerations

The LIF-MD6000-6UMG64ITR1K serves as a reel-based alternative with identical electrical characteristics. Evaluate packaging requirements to determine suitability between tape-and-reel and tube formats.
