LMV881LEX/NOPB

Instrumentation, Op Amps, Buffer Amps Overview

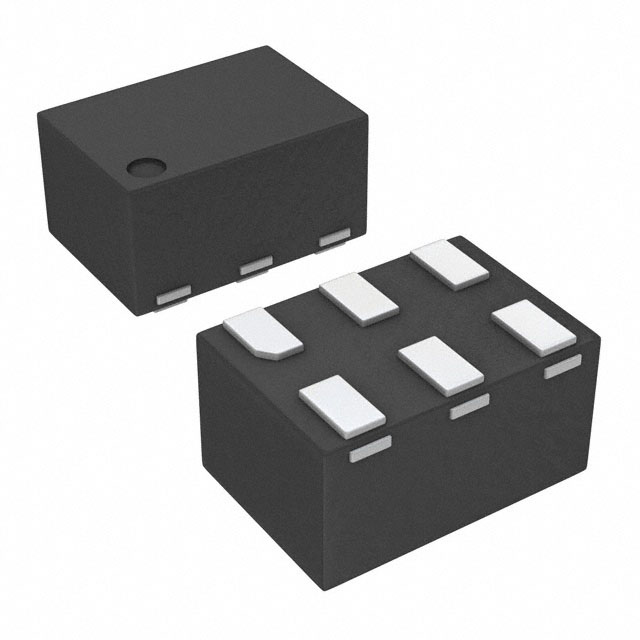

The LMV881LEX/NOPB is a single-channel precision operational amplifier manufactured by Texas Instruments. It features a gain-bandwidth product of 23 MHz and a slew rate of 12 V/us. The device operates within a supply voltage range of 2.7 V to 5.5 V, consuming 1.9 mA of quiescent current per channel. Key electrical specifications include an input offset voltage of 273 uV, input bias current of 100 fA, and input voltage noise density of 9 nV/sqrt Hz. It provides a common-mode rejection ratio of 94 dB and can deliver up to 70 mA output current. The component utilizes a USON-6 surface-mount package and supports rail-to-rail input and output operation across a temperature range of -40 C to +125 C.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• EMI hardened CMOS architecture designed for robust performance in electrically noisy environments
• Rail-to-rail input and output capabilities enabling maximum dynamic signal swing
• Precision characteristics with low input offset voltage and ultra-low input bias current

Instrumentation, Op Amps, Buffer Amps Applications

• Signal conditioning in industrial measurement systems
• Data acquisition front-end circuits requiring high accuracy
• Sensor interface applications in automotive electronics

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the complete part number including the suffix /NOPB to ensure lead-free compliance and specific tape-and-reel packaging configuration. Confirm that the USON-6 footprint matches your PCB layout constraints. Check the manufacturer datasheet for thermal dissipation requirements under maximum load conditions. Ensure the operating environment does not exceed the specified electromagnetic interference thresholds despite the hardened design.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when high precision and EMI immunity are required in a compact form factor. The 23 MHz bandwidth suits moderate-speed signal processing tasks. Compare against standard op-amps if lower cost is prioritized over noise performance. Consider the 1.9 mA current consumption relative to battery-powered system budgets. Verify compatibility with single-supply or dual-supply configurations within the 2.7 V to 5.5 V range.

Instrumentation, Op Amps, Buffer Amps Part Context

This device belongs to the LMV881 series of precision amplifiers from Texas Instruments. It is part of a family focused on combining high performance with small package sizes. The series targets applications demanding accurate signal amplification in space-constrained designs. Other members may offer different channel counts or slight variations in speed and power consumption.

Instrumentation, Op Amps, Buffer Amps FAQ

Does the LMV881LEX/NOPB support shutdown functionality?

No, the LMV881LEX/NOPB does not include a shutdown pin or feature; it operates continuously when powered.

What is the maximum output current capability of this amplifier?

The amplifier can source or sink up to 70 mA per channel under normal operating conditions.
