LNA-20-12001800-35-25P

Overview

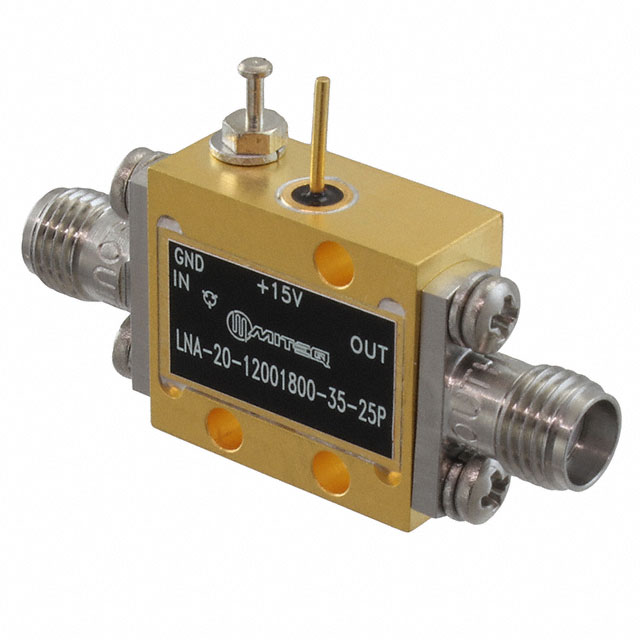

The LNA-20-12001800-35-25P is an RF amplifier module manufactured by Amphenol Narda-MITEQ. It operates within a frequency range of 12 GHz to 18 GHz, designed for VSAT applications. The device provides a gain of 20 dB with a noise figure of 3.5 dB. It supports an output power level of 25 dBm and requires a supply voltage of 15 VDC. The unit utilizes SMA connectors for signal interfacing and functions as a low-noise amplifier component in microwave systems.

Feature Summary

• Provides stable amplification within the specified Ku-band frequency range
• Engineered for Very Small Aperture Terminal (VSAT) communication systems
• Integrates low noise performance characteristics for signal integrity

Applications

• VSAT uplink and downlink signal conditioning
• Microwave communication system front-end modules
• Satellite ground station receiver chains

Procurement Notes

Verify manufacturer part number accuracy against official Amphenol Narda-MITEQ documentation before ordering. Confirm interface connector types and supply voltage requirements match system specifications. Ensure environmental operating temperature ranges align with deployment conditions. Request current datasheets to validate latest revision details and compliance status prior to procurement finalization.

Selection Notes

Select this module when specific Ku-band amplification with defined noise figures is required for satellite communications. Compare gain and linearity parameters against system link budget requirements. Evaluate physical module dimensions and connector compatibility with existing RF infrastructure. Consider thermal management needs based on continuous operation power dissipation profiles.

Part Context

This component belongs to the LNA series of low-noise amplifiers produced by Amphenol Narda-MITEQ. The series offers various frequency configurations tailored for specialized RF applications. The manufacturer specializes in microwave and RF components known for reliability in demanding environments. This specific model addresses narrowband requirements within the broader product portfolio.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical parameter equivalence including frequency range, gain, and noise figure. Check mechanical footprint and connector compatibility for direct replacement scenarios.
