LNA-30-04001200-40-25P

Overview

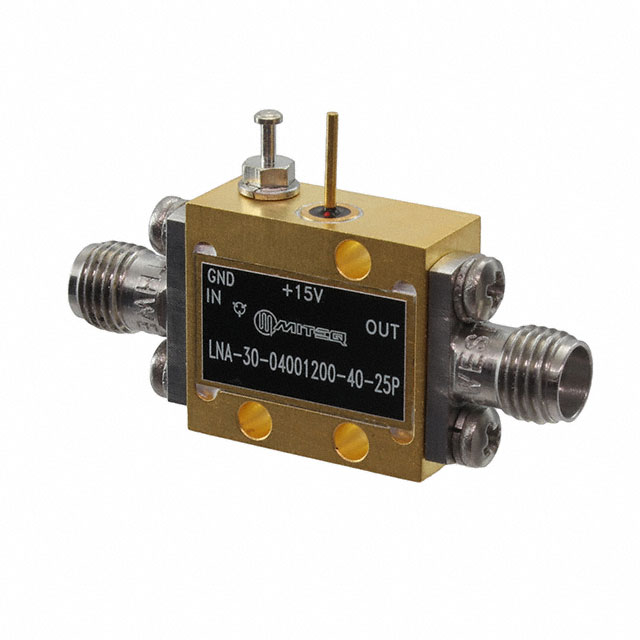

The LNA-30-04001200-40-25P is an RF amplifier module from the LNA series by Amphenol Narda-MITEQ. It operates within a frequency range of 4 GHz to 12 GHz, providing a gain of 30 dB and a noise figure of 4 dB. The device supports a P1dB output power of 25 dBm and requires a 15 V DC supply with a current draw of 500 mA. Designed for VSAT applications, it features SMA connectors and functions reliably between -55°C and +85°C.

Feature Summary

• Provides high-gain amplification suitable for satellite communication systems
• Maintains low noise characteristics across a wide microwave frequency band
• Engineered for robust performance in demanding environmental conditions

Applications

• VSAT uplink and downlink signal conditioning
• Microwave radio relay systems
• Test and measurement instrumentation front ends

Procurement Notes

Verify the specific ordering suffix and connector type against the official datasheet to ensure compatibility with existing system interfaces. Confirm that the 15V DC supply requirements align with the host board design. Check for any regional distribution restrictions or obsolescence notices before finalizing procurement plans.

Selection Notes

Select this component when a 30 dB gain and 4 dB noise figure are required within the 4-12 GHz spectrum. Ensure the host system can provide the necessary 15V bias at 500mA. Consider the SMA interface and box packaging format for integration into standard RF test setups or embedded modules.

Part Context

This part belongs to the LNA series of low-noise amplifiers manufactured by Amphenol Narda-MITEQ. The company specializes in high-performance microwave and RF components for military and commercial applications. This specific model is designed for reliability in VSAT and radar systems.

FAQ

What is the maximum input power before compression?

The P1dB output power specification is 25 dBm, indicating the output level at which gain compresses by 1 dB.

Does this module include internal filtering?

The provided documentation describes it as a general RF amplifier module without specifying integrated filtering capabilities.
