LNA-30-12001800-35-25P

Overview

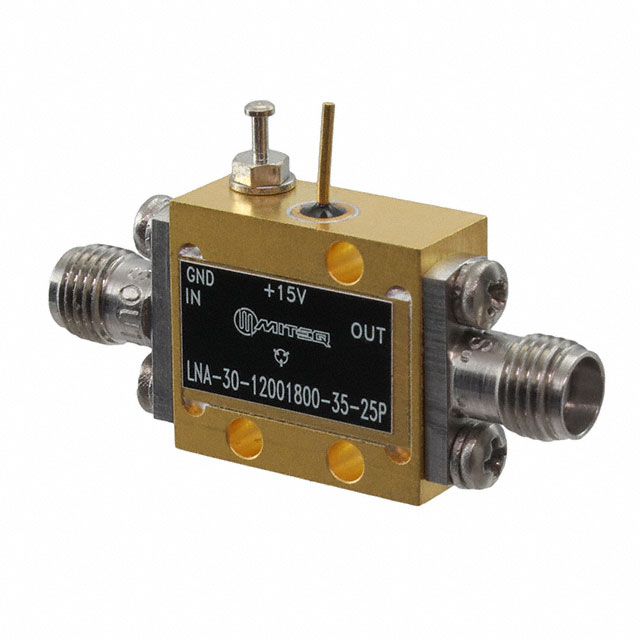

The LNA-30-12001800-35-25P is a low noise amplifier manufactured by L3 Narda-MITEQ. It operates within a frequency range of 12 GHz to 18 GHz. The device provides a nominal gain of 30 dB and maintains a typical noise figure of 3.5 dB. It supports an output power level of 25 dBm. The unit is designed for signal conditioning applications requiring high performance in the microwave spectrum.

Feature Summary

• Provides amplification with specified gain characteristics across the designated frequency band
• Engineered for low noise performance suitable for sensitive signal reception
• Constructed as a ruggedized module for reliable operation in demanding environments

Applications

• VSAT communication systems
• Microwave receiver front ends
• Electronic warfare equipment

Procurement Notes

Verify the exact datasheet specifications against your system requirements before procurement. Confirm that the operating voltage, connector type, and mounting configuration match your design constraints. Ensure compatibility with your RF interface standards. Check for any specific handling or installation instructions provided by the manufacturer to maintain performance integrity.

Selection Notes

Select this component when a wideband low noise amplifier is required for frequencies between 12 GHz and 18 GHz. Consider its 30 dB gain and 3.5 dB noise figure for applications prioritizing signal fidelity. Evaluate the 25 dBm output capability against your downstream stage input requirements. Ensure the physical form factor fits your enclosure constraints.

Part Context

This part belongs to the LNA series from L3 Narda-MITEQ, known for robust microwave components. The brand specializes in RF and microwave solutions for military and commercial sectors. This specific model represents a modular amplifier design intended for integration into larger RF systems requiring stable gain and low noise characteristics in the C and X bands.

Replacement Considerations

Consult official substitution lists from L3 Narda-MITEQ for verified equivalents. Cross-reference pinouts and electrical parameters carefully. Generic replacements may not match the specific noise figure or gain flatness required for critical applications.
