LNA-40-00101800-25-10P

Overview

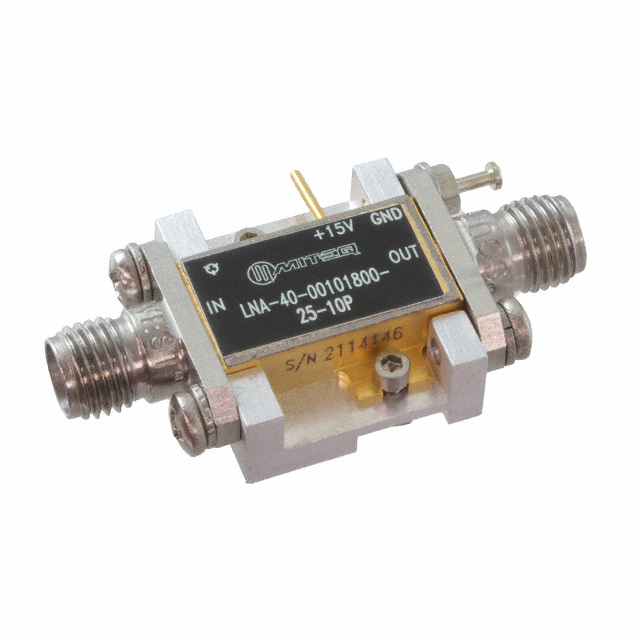

The LNA-40-00101800-25-10P is a low noise amplifier module manufactured by L3 Narda-MITEQ. It operates within a frequency range of 100 MHz to 18 GHz, designed for VSAT applications. The device provides a minimum gain of 40 dB with a maximum gain flatness of 2 dB +/- at 23 °C. It utilizes SMA connectors and is housed in a module package.

Feature Summary

• Provides high-gain amplification suitable for VSAT systems
• Operates across a wide frequency spectrum from 100 MHz to 18 GHz
• Maintains specified gain flatness under standard temperature conditions

Applications

• VSAT communication systems
• RF signal conditioning
• Low noise amplification in receiver chains

Procurement Notes

Verify the specific manufacturer designation, as sources list both L3 Narda-MITEQ and Amphenol/Narda-MITEQ. Confirm the exact datasheet version matches the required electrical specifications before procurement. Ensure compatibility with SMA connector interfaces and module packaging requirements for integration into existing RF infrastructure.

Selection Notes

Select this component when a wideband low noise amplifier is required for frequencies up to 18 GHz. The 40 dB minimum gain makes it suitable for boosting weak signals in VSAT environments. Consider the module form factor and SMA interface for system integration needs.

Part Context

This part belongs to the LNA series of low noise amplifiers from Narda-MITEQ. These modules are engineered for robust performance in satellite communication applications. The specific model number indicates its frequency coverage and gain characteristics within the product family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels for direct equivalents or updated series replacements.
