Product Detailed Parameters

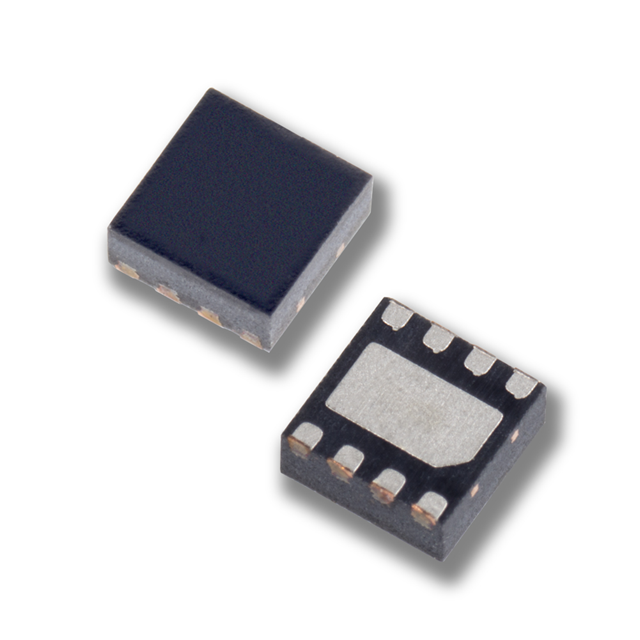

- Description：JFET P-CH 40V 10MA 8DFN
- Series：-
- Mfr：Linear Integrated Systems, Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：P-Channel
- Voltage - Breakdown (V(BR)GSS)：40 V
- Drain to Source Voltage (Vdss)：40 V
- Current - Drain (Idss) @ Vds (Vgs=0)：-
- Current Drain (Id) - Max：10 mA
- Voltage - Cutoff (VGS off) @ Id：7.5 V @ 1 µA
- Input Capacitance (Ciss) (Max) @ Vds：13pF @ 20V
- Resistance - RDS(On)：50 Ohms
- Power - Max：350 mW
- Operating Temperature：-55°C ~ 135°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：8-VFDFN Exposed Pad
- Supplier Device Package：8-DFN (2x2)
- Grade：-
- Qualification：-
