LS352 SOT-23 6L

Overview

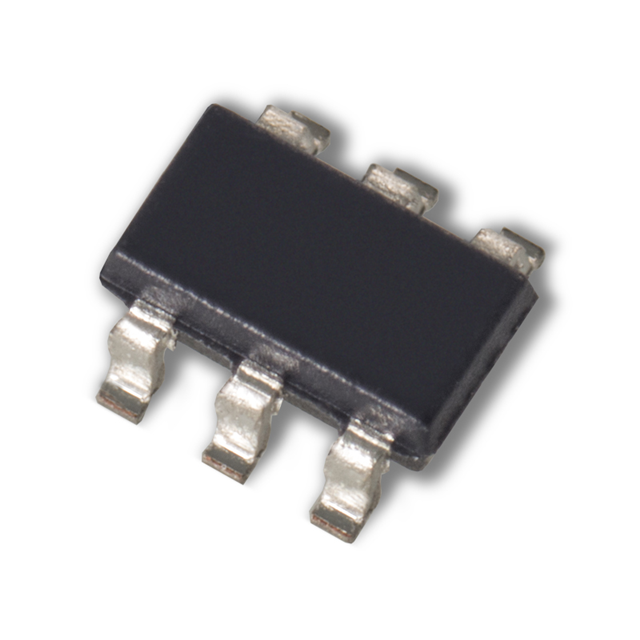

The LS352 SOT-23 6L is a dual PNP bipolar junction transistor (BJT) array manufactured by Linear Integrated Systems, Inc. It features a collector-emitter voltage rating of 60V and a continuous collector current of 10mA. The device supports a transition frequency of 200MHz and dissipates up to 500mW of power. Packaged in a surface-mount SOT-23-6 outline, it integrates two independent PNP transistors for compact circuit design.

Feature Summary

• Dual PNP configuration within a single package
• High-speed operation capability
• Surface-mount form factor

Applications

• Signal switching circuits
• Logic interface applications
• General-purpose amplification stages

Procurement Notes

Verify the manufacturer part number against official Linear Integrated Systems documentation to ensure authenticity. Confirm that the SOT-23-6 package marking matches the specific LS352 variant. Request datasheets directly from authorized sources to validate electrical specifications before integration into production designs.

Selection Notes

Select this component when a dual PNP transistor solution is required in a small footprint. Ensure the 60V voltage rating and 10mA current limits meet the circuit requirements. Consider the 200MHz frequency response for high-speed signal processing needs compared to slower general-purpose alternatives.

Part Context

This component belongs to the Bipolar Transistor Arrays category from Linear Integrated Systems. It serves as a compact alternative to discrete dual transistors, offering space savings in portable electronics and dense PCB layouts while maintaining standard BJT performance characteristics.

Replacement Considerations

Consult official substitution guides for compatible dual PNP arrays with matching voltage and current ratings. Verify pinout compatibility and thermal dissipation capabilities before replacing with similar SOT-23-6 packages.
