LT1027CCH-5

$6.50

Description：IC VREF SERIES 5V TO5
Series：-
Mfr：Analog Devices Inc.
Package：Bulk

SKU:ba7646ee4301 Category: Voltage Reference Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LT1027CCH-5 is listed in the Voltage Reference range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC VREF SERIES 5V TO5. Review the specifications below when checking this part for your BOM.

Voltage Reference specifications for LT1027CCH-5

Description：IC VREF SERIES 5V TO5
Series：-
Mfr：Analog Devices Inc.
Package：Bulk
Output Type：-
Voltage - Output (Min/Fixed)：5V
Voltage - Output (Max)：-
Current - Output：-
Operating Temperature：-
Mounting Type：Through Hole

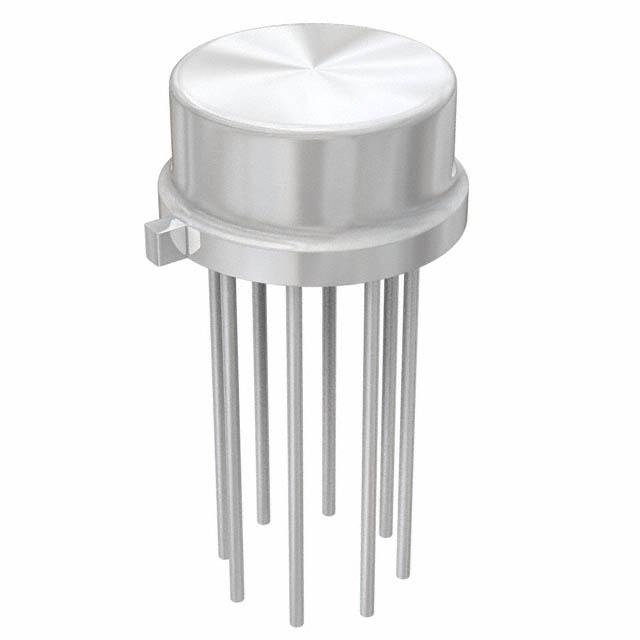

Package / Case：TO-205-8, TO-5-8 Metal Can
Supplier Device Package：TO-5
Grade：-
Qualification：-

Voltage Reference datasheet and documents for LT1027CCH-5

LT1027CCH-5

Voltage Reference Overview

The LT1027CCH-5 is a precision 5V voltage reference housed in an 8-lead TO-5 metal can package. It provides a fixed output voltage of 5.000V with a maximum temperature coefficient of 3ppm/°C and an accuracy tolerance of ±0.05%. The device operates within an input voltage range of 8V to 40V, drawing a typical supply current of 2.2mA. It features a noise reduction pin for filtering and supports sourcing up to 15mA and sinking up to 10mA.

Voltage Reference Feature Summary

Utilizes advanced subsurface Zener bipolar process for low noise and stability
Features fast transient response suitable for A-to-D converter inputs
Includes dedicated noise reduction pin for improved signal integrity
Offers adjustable output voltage via external trimming

Voltage Reference Applications

A-to-D and D-to-A converters
Digital voltmeters
Precision current sources
Reference standards

Voltage Reference Procurement Notes

Verify the specific ordering suffix 'H' corresponds to the 8-lead TO-5 metal can package configuration. Confirm that the 'C' grade meets the required temperature coefficient and accuracy specifications for the application environment. Ensure compatibility with existing PCB footprints designed for this specific hermetic package style.

Voltage Reference Selection Notes

Select the LT1027CCH-5 when high stability and low drift are critical requirements. This component is appropriate for systems demanding superior line and load regulation without the complexity of heated references. Consider the TO-5 package constraints regarding thermal resistance and physical mounting compared to plastic alternatives.

Voltage Reference Part Context

The LT1027 series represents Analog Devices' precision voltage reference family based on proprietary subsurface Zener technology. This architecture eliminates noise issues associated with surface breakdown devices. The CCH-5 variant specifically denotes the industrial temperature range version packaged in a hermetic metal can, distinct from plastic SO or PDIP options.
