LTM9004CV-AA#PBF

Overview

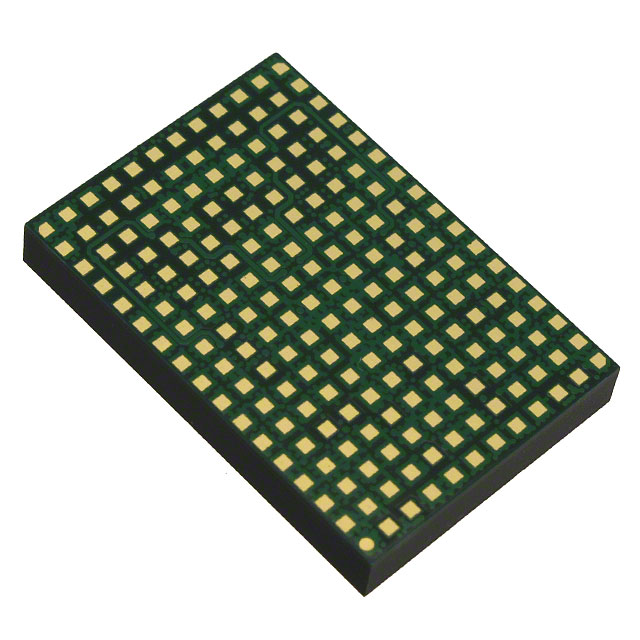

The LTM9004CV-AA#PBF is a 14-bit direct conversion receiver subsystem manufactured by Analog Devices Inc. It utilizes integrated system-in-package technology to combine multiple functions into a single component. The device operates within a frequency range of 700 MHz to 2.7 GHz and features an integrated low-pass filter with a cutoff frequency of 20 MHz. It is housed in a 204-lead LGA package measuring 22 mm by 15 mm.

Feature Summary

• Integrates direct conversion receiver functionality within a compact system-in-package design
• Supports wideband operation across the 700 MHz to 2.7 GHz frequency spectrum
• Includes an integrated 20 MHz low-pass filter for signal conditioning

Applications

• General purpose RF receiver systems
• Wireless communication infrastructure
• Test and measurement equipment requiring direct conversion architectures

Procurement Notes

Verify the specific suffix AA against official Analog Devices documentation to confirm pinout and electrical characteristics. Ensure the 204-LGA package dimensions align with PCB layout constraints. Confirm RoHS compliance status through current manufacturer declarations before finalizing procurement plans.

Selection Notes

Select this component when a high-resolution 14-bit direct conversion architecture is required for frequencies up to 2.7 GHz. Consider the integrated 20 MHz filter bandwidth relative to the target signal requirements. Evaluate the 204-LGA footprint availability during the initial schematic capture phase to prevent layout revisions.

Part Context

This part belongs to the LTM9004 series of µModule Receiver Subsystems from Analog Devices. These devices are designed to simplify RF front-end design by integrating passive and active components. The CV-AA variant specifies the commercial temperature range and specific internal configuration distinct from other suffixes like AB or AC.

Replacement Considerations

Public confirmed substitutes include LTM9004CV-AB#PBF and LTM9004CV-AC#PBF. Verify that the alternative suffix matches the required temperature grade and internal circuit configuration before substitution.
