LTM9013IY-AA#PBF

Overview

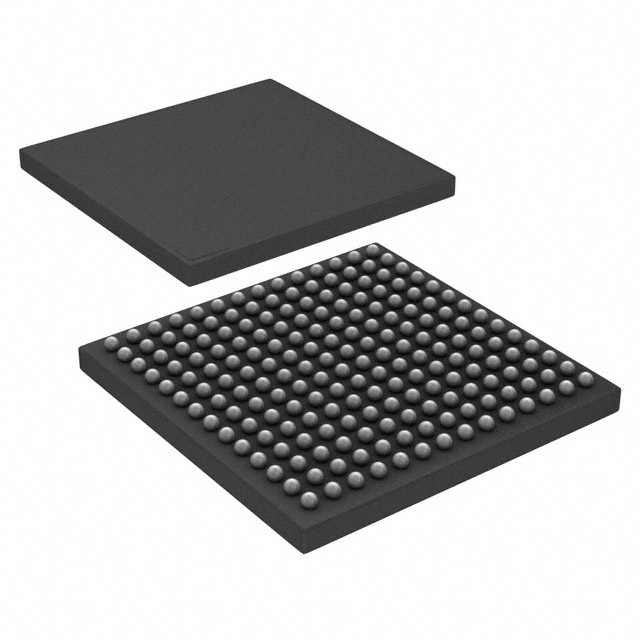

The LTM9013IY-AA#PBF is a 300MHz wideband, low intermediate frequency receiver module manufactured by Analog Devices Inc. It utilizes system-in-package technology to integrate dual high-speed 14-bit analog-to-digital converters, low-pass filters, differential gain stages, and a quadrature demodulator within a single micro module. The device supports sample rates up to 310Msps with parallel, serial, or LVDS data output interfaces. Designed for telecom applications, it operates within a frequency range of 700MHz to 4GHz. The component is housed in a 196-lead BGA package measuring 15mm x 15mm x 2.82mm and functions across an industrial temperature range of -40°C to 85°C.

Feature Summary

• Integrates dual high-speed 14-bit ADCs, low-pass filters, differential gain stages, and quadrature demodulator into a single micro module using system-in-package technology
• Supports flexible data output via parallel, serial, or LVDS interfaces for instrumentation compatibility
• Provides wideband reception capabilities covering 700MHz to 4GHz frequency range

Applications

• Telecommunications systems requiring wideband signal processing
• Instrumentation applications needing high-speed parallel and serial data conversion
• Broadband receiver architectures utilizing low intermediate frequency techniques

Procurement Notes

Verify part status carefully as the LTM9013IY-AA#PBF is scheduled for obsolescence and will be discontinued by the manufacturer. Confirm availability through authorized distributors before finalizing procurement plans. Ensure that the specific suffix AA#PBF matches the required pinout and packaging specifications for your design integration. Cross-reference official datasheets for any last-time buy notifications or end-of-life timelines provided by Analog Devices Inc.

Selection Notes

Select this component when designing systems requiring integrated quadrature demodulation and high-resolution digitization in a compact form factor. The 14-bit resolution and 310Msps sampling rate suit applications demanding precise signal capture. Consider the 196-lead BGA package constraints during PCB layout. Evaluate thermal management requirements given the typical power consumption of 2.6W. Ensure interface compatibility with downstream digital processing units supporting parallel, serial, or LVDS inputs.

Part Context

This device belongs to the LTM9013 family of wideband receivers from Analog Devices Inc. It is specifically engineered for telecom and instrumentation sectors where space-constrained designs require high-performance RF front-end functionality. The integration of ADCs and demodulators reduces external component count compared to discrete solutions. Related parts in the series may offer variations in sampling rates or resolution, but this specific model focuses on the 14-bit/310Msps configuration within a 15mm square BGA footprint.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacements should be evaluated based on functional equivalence of bandwidth, resolution, and package dimensions. Consult Analog Devices technical support for current portfolio alternatives.
