M31002AGLC 240.000000

Overview

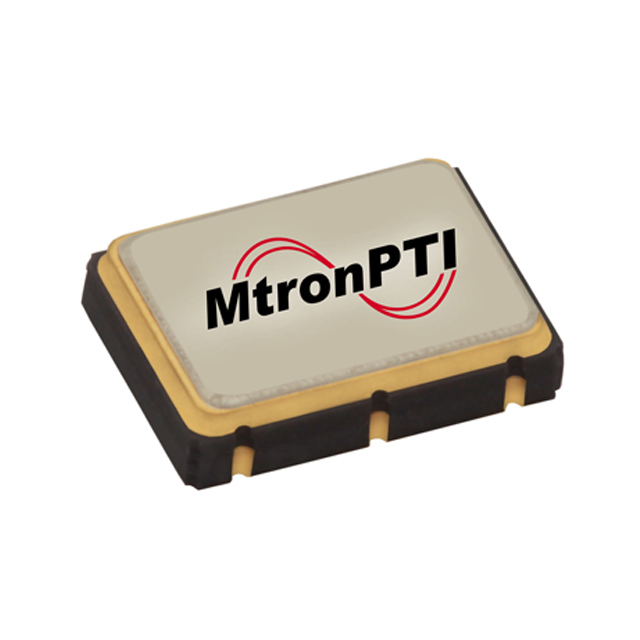

The M31002AGLC 240.000000 is a Voltage Controlled Crystal Oscillator (VCXO) operating at a nominal frequency of 240 MHz. It utilizes LVDS output signaling and supports 3.3V power supply with enable/disable functionality. The component is housed in a 6-SMD, No Lead package measuring 5x7 mm. Designed for high precision, it incorporates QiK Chip technology to deliver superior jitter performance comparable to SAW-based solutions.

Feature Summary

• Integrates hermetically sealed high precision AT cut quartz crystal with QiK Chip technology
• Provides industry setting 0.35 ps RMS jitter performance and excellent phase noise
• Offers flexible power requirements including 3.3, 2.5, and 1.8 Volt options
• Supports multiple output types such as LVPECL, LVDS, or CML

Applications

• Clock and Data Recovery systems
• Low Jitter Clock Generation
• Telecommunications networks including SONET/SDH and DWDM
• Wireless base stations and WLAN infrastructure

Procurement Notes

Verify the specific voltage tolerance and control voltage range required for your circuit design against the official datasheet specifications. Confirm that the LVDS output impedance matches your load requirements. Ensure the 5x7 mm SMD footprint aligns with your PCB layout constraints. Check for any specific handling instructions related to the hermetically sealed quartz construction during assembly.

Selection Notes

Select this model when low jitter performance is critical for signal integrity in high-speed data transmission applications. The 240 MHz frequency suits specific telecommunications standards requiring precise clocking. Consider the LVDS interface if differential signaling is preferred for noise immunity. The compact 5x7 mm package is suitable for space-constrained designs in network equipment.

Part Context

This component belongs to the M320x series of VCXOs manufactured by MtronPTI. The series is characterized by tight thermal stability, broad frequency ranges from 150 MHz to 1.4 GHz, and an industry-standard package size. These oscillators are engineered to provide designers with a quick foundation for building reliable timing solutions with short cycle times.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs before considering alternative sources.
