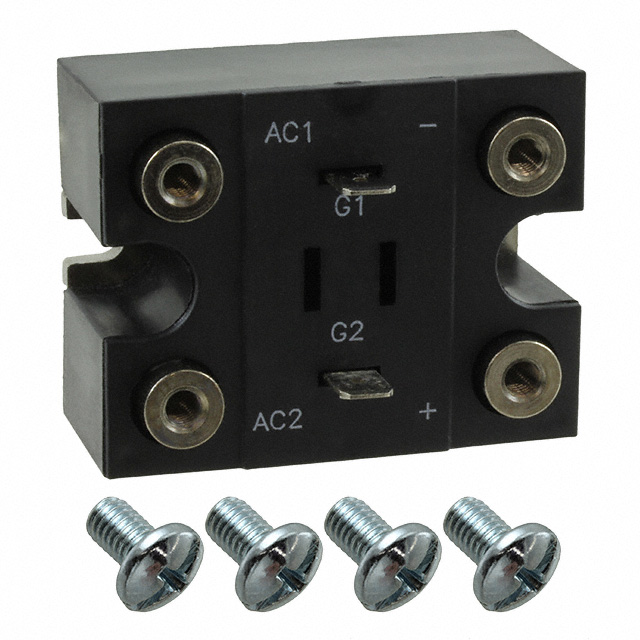

M5010015F

$215.15

Description：MODULE POWER 100A 1200V SCR CC
Series：M50

SKU:0d7f5f704c43 Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE POWER 100A 1200V SCR CC
Series：M50
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：1.2 kV
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：1500A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

M5010015F

Overview

The Sensata-Crydom M5010015F is a silicon SCR module from the M50 series, rated for 1200V reverse voltage and 100A on-state current. It features a half-controlled bridge configuration with a common cathode and built-in diode. The device has a forward voltage of 1.2V and supports a non-repetitive peak surge current of 1500A at 60Hz. Operating within a junction temperature range of -40°C to +125°C, it utilizes screw mount installation in a module package.

Feature Summary

Half-controlled bridge topology with integrated freewheeling diode
Isolated case construction for mounting flexibility
High thermal stability across extended temperature ranges

Applications

Industrial motor drives
Power supply rectification
Welding equipment control

Procurement Notes

Verify the specific suffix 'F' against official datasheets to confirm terminal plating or packaging variations. Ensure compatibility with existing heatsinking requirements given the 208g weight. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.

Selection Notes

Select this component for high-current applications requiring robust surge handling capabilities. The 1200V rating suits medium-voltage AC systems. Consider the 1.2V forward drop for thermal management calculations. Verify gate trigger parameters match the control circuit design constraints.

Part Context

Part of the M50 discrete semiconductor module family designed for power switching. Replaces obsolete models like M5010014F. Manufactured by Sensata under the Crydom brand. Designed for industrial environments requiring reliable SCR performance.
