Product Detailed Parameters
- Description：BRIDGE RECT 1P 400V 100A MODULE
- Series：-
- Mfr：Sensata-Crydom
- Package：Bulk
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：400 V
- Current - Average Rectified (Io)：100 A
- Voltage - Forward (Vf) (Max) @ If：1.2 V @ 100 A
- Current - Reverse Leakage @ Vr：-
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

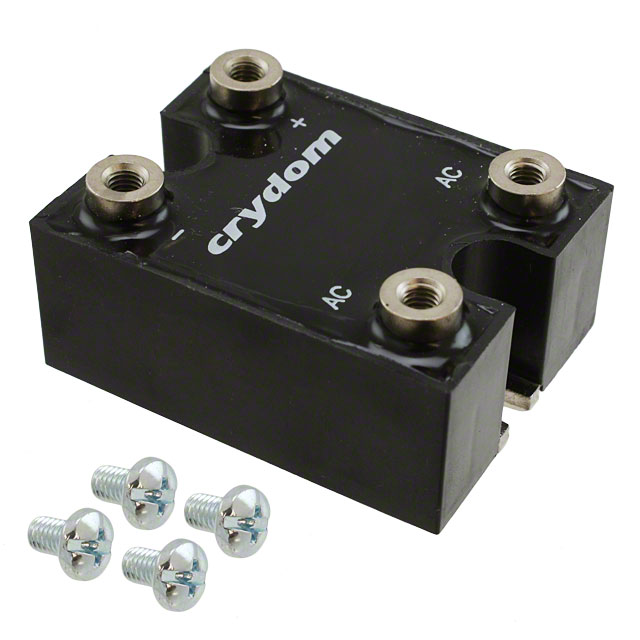

The M50100SB400 is a single-phase diode power module manufactured by Sensata-Crydom under the M50 series. It features a silicon construction with a maximum reverse voltage of 400 V and a forward voltage drop of 1.2 V. The module supports an average current of 100 A and operates within a junction temperature range of -40°C to +125°C. Designed for screw mount installation, it utilizes a robust module package suitable for high-power applications requiring reliable rectification.
Feature Summary
- High current capacity rated at 100 A for demanding power applications
- Robust silicon construction ensuring stable operation across wide temperature ranges
- Screw mount configuration providing secure mechanical integration
Applications
- Industrial power supply systems
- Motor drive rectification circuits
- General purpose AC to DC conversion
Procurement Notes
Verify the specific ordering suffix against official datasheets to confirm voltage ratings and pin configurations. Ensure compatibility with existing thermal management solutions given the 100 A rating. Confirm RoHS compliance status if required for specific regulatory environments before finalizing procurement orders.
Selection Notes
Select this module when a 400 V reverse voltage rating and 100 A continuous current are required in a compact screw-mount form factor. Consider the 1.2 V forward voltage drop for thermal calculations. Ensure the application environment stays within the specified -40°C to +125°C operating temperature limits for optimal reliability.
Part Context
This component belongs to the M50 series of discrete and power modules from Sensata-Crydom. The series is designed for high-power switching and rectification needs in industrial settings. The M50100SB400 specifically addresses applications requiring moderate voltage blocking capabilities with significant current handling capacity.
Replacement Considerations
Check for direct substitutes within the M50 series with different voltage ratings such as M50100SB800 or M50100SB1000 if higher voltage isolation is needed. Verify pinout compatibility before replacing with other manufacturers' 100 A diode modules.
