M50100SB600

Overview

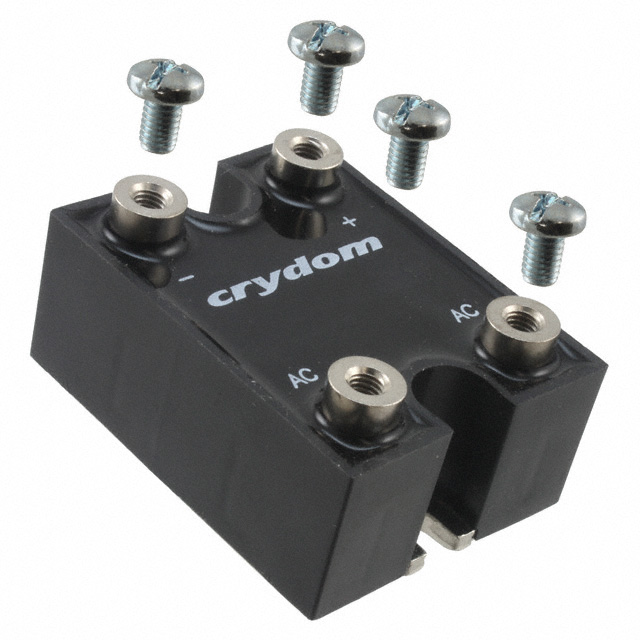

The M50100SB600 is a silicon diode module manufactured by Sensata-Crydom, designed for high-power rectification applications. It features a single-phase bridge configuration housed in the M50 package with screw mount installation. The device supports an average forward current of 100 A and withstands a peak reverse voltage of 600 V. Key electrical parameters include a forward voltage drop of 1.2 V at rated current. The component operates within a junction temperature range of -40°C to +125°C.

Feature Summary

• Single-phase bridge rectifier topology for efficient AC-to-DC conversion
• Robust M50 package design enabling secure screw mounting
• High thermal stability suitable for demanding industrial environments

Applications

• Industrial power supply systems requiring reliable rectification
• Motor drive circuits and variable frequency drives
• Welding equipment power stages

Procurement Notes

Verify the manufacturer part number against official Sensata-Crydom documentation to ensure authenticity. Confirm that the specific revision matches project requirements. Check RoHS compliance status through the official datasheet or certificate of conformity. Ensure storage conditions align with semiconductor handling guidelines to prevent moisture damage prior to assembly.

Selection Notes

Select this module when a 100 A continuous current rating and 600 V blocking voltage are required in a compact form factor. The M50 package offers standardized mounting dimensions for easy integration into existing heat sink assemblies. Consider the 1.2 V forward voltage drop for thermal management calculations to determine appropriate cooling solutions for the application.

Part Context

This component belongs to the M50 Diode series from Crydom, a line known for robust power switching capabilities. The M50 family provides various current and voltage ratings within a consistent mechanical footprint, facilitating modular design approaches. Sensata-Crydom utilizes advanced silicon technology to ensure reliability in high-stress power electronics applications across multiple industries.

Replacement Considerations

Direct replacements must match the 100 A current rating, 600 V reverse voltage, and M50 package style. Verify pinout compatibility and thermal characteristics before substitution. Other M50 series variants with identical electrical specifications may serve as functional equivalents if available.
