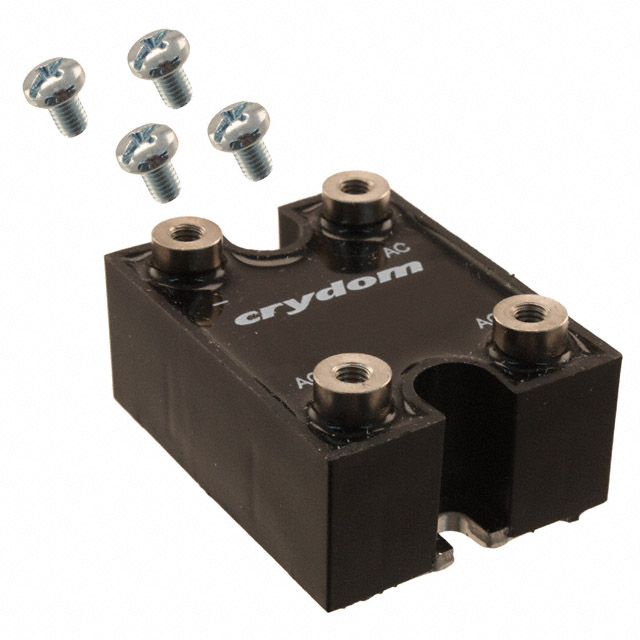

M50100THA1600 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is DIODE MOD GP 1600V 100A MOD. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for M50100THA1600
- Description：DIODE MOD GP 1600V 100A MOD
- Series：-
- Mfr：Sensata-Crydom
- Package：Bulk,Bulk
- Diode Configuration：3 Common Anode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：100A
- Voltage - Forward (Vf) (Max) @ If：1.2 V @ 100 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：-
- Operating Temperature - Junction：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for M50100THA1600
Diode Arrays Overview
The M50100THA1600 is a silicon diode module from the Crydom M50 series, manufactured by Sensata. It features a THA circuit configuration with two diodes in series connection. The module supports an output current of 100 A and has a reverse voltage rating of 1.6 kV. Forward voltage is specified at 1.2 V. It operates within a temperature range of -40°C to +125°C. The component utilizes screw mount installation in an M50 package.
Diode Arrays Feature Summary
- Features a THA circuit configuration with two diodes connected in series for high-voltage applications.
- Utilizes silicon technology for robust power switching performance.
- Designed for screw mount installation within the standardized M50 module form factor.
Diode Arrays Applications
- Industrial power rectification systems
- High-voltage DC power supplies
- Solid-state power switching circuits
Diode Arrays Procurement Notes
Verify the specific part number against official Sensata-Crydom documentation to confirm technical specifications. Ensure compatibility with existing thermal management solutions and mounting hardware requirements. Cross-reference datasheet parameters such as forward voltage and reverse voltage ratings with system design constraints before procurement.
Diode Arrays Selection Notes
Select this module when a 100 A current rating and 1.6 kV reverse voltage are required in a compact M50 package. Consider the THA circuit topology for specific series diode configurations. Evaluate thermal dissipation needs based on the 1.2 V forward voltage drop at full load conditions.
Diode Arrays Part Context
This component belongs to the Crydom M50 series of discrete semiconductor modules. The series offers various diode and SCR configurations designed for industrial power electronics. The M50 package provides a standardized footprint for easy integration into larger power assemblies and heat sink structures.
Diode Arrays Replacement Considerations
Consult official Sensata-Crydom substitution guides for verified equivalents. Ensure any replacement maintains identical electrical ratings and mechanical dimensions.
