M505012V

$78.40

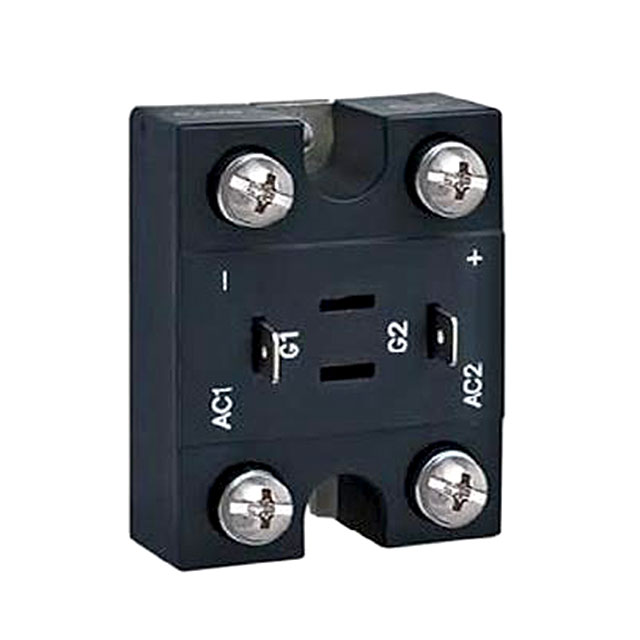

Description：MODULE POWER 50A 600V SCR CC
Series：M50

SKU:71e54f7dd6a1 Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE POWER 50A 600V SCR CC
Series：M50
Mfr：Sensata-Crydom
Package：Bulk,Box
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：600 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：600A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

M505012V

Overview

The Sensata-Crydom M505012V is a silicon-controlled rectifier (SCR) power module designed for high-power industrial applications. It features a common cathode configuration with a rated off-state voltage of 600 V and an average on-state current of 50 A. The device supports a non-repetitive surge current of 600 A at 60 Hz, providing robust overload protection. Key electrical parameters include a maximum gate trigger voltage and a forward voltage drop specified at rated current. The module utilizes the M50 series packaging, ensuring efficient thermal management and reliable performance in demanding environments.

Feature Summary

High surge current capability for robust system protection
Efficient thermal management design for long lifetime
Common cathode configuration for simplified circuit integration

Applications

Industrial motor drives
Power supply systems
Welding equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical characteristics and mechanical dimensions before integration. Ensure that the application environment remains within the specified operating temperature range to maintain reliability. Cross-reference official Sensata-Crydom resources for any recent product change notices or obsolescence alerts associated with this part number.

Selection Notes

Select the M505012V when a 600 V blocking voltage and 50 A continuous current rating are required in a compact module format. Consider the 600 A surge capacity for applications involving high inrush currents. Evaluate the thermal requirements of the host system to ensure adequate heat sinking, as the module's performance depends on effective thermal dissipation within the M50 series housing constraints.

Part Context

This component belongs to the M50 series of power modules from Sensata-Crydom. The series is characterized by its standardized footprint and high-efficiency thermal design, allowing for consistent mounting solutions across various voltage and current ratings within the family. The M505012V specifically represents the SCR variant within this lineup, distinct from diode or bridge rectifier modules in the same series.
