M7S63TBJ-R 1.996800

Overview

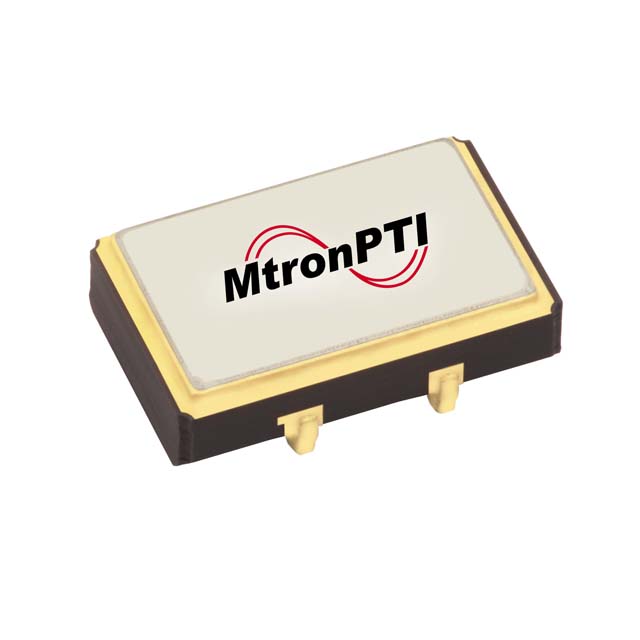

The M7S63TBJ-R is a standard XO oscillator manufactured by MtronPTI, operating at a nominal frequency of 1.996800 MHz. It features TTL output logic with tri-state capability for output enable control. The device utilizes a compact 4-SMD J-lead ceramic package designed for surface mount applications. It operates on a 5V supply voltage and supports a wide industrial temperature range from -55°C to +105°C. This component is RoHS compliant and suitable for general clock signal generation in digital circuits requiring precise timing references.

Feature Summary

• Tri-state output functionality allows for bus sharing and power management
• J-lead ceramic package provides robust mechanical stability
• Wide operating temperature range ensures reliability in harsh environments

Applications

• Digital system clock generation
• Microprocessor timing references
• General purpose instrumentation

Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your circuit design before ordering. Confirm that the tri-state enable pin configuration matches your board layout. Ensure the 5V supply voltage aligns with your system power rails. Check the physical footprint compatibility with your PCB solder mask and paste stencil. Validate the RoHS compliance status if required by your environmental regulations.

Selection Notes

Select this model when a standard TTL clock source with enable control is needed. Consider the 4-pin J-lead package for space-constrained designs. Evaluate the 5V operation against available power supplies. Compare jitter specifications if high-frequency precision is critical. Review the temperature range suitability for your operational environment.

Part Context

This part belongs to the M7S series of oscillators from MtronPTI. The series typically offers various output logic types and frequencies. The J-lead package is common for hermetic sealing in demanding applications. Other variants in the series may differ in frequency, output type, or package size.

Replacement Considerations

Direct replacements must match the 4-SMD J-lead package and TTL tri-state output. Verify identical frequency and voltage requirements. Cross-reference pinouts for enable functionality. Ensure thermal characteristics are compatible. Consult manufacturer databases for updated equivalents.
