MA06024

Oscillators Overview

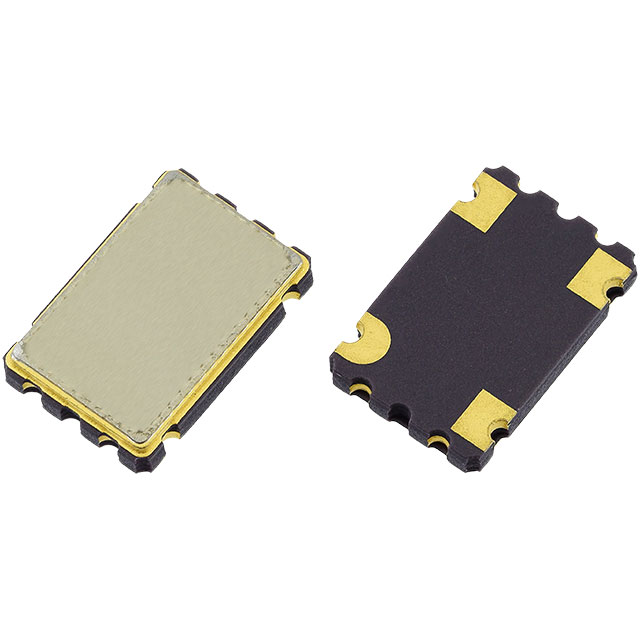

The MA06024 is a parallel fundamental quartz crystal manufactured by Golledge Electronics Ltd. It operates within a frequency range of 9.20 MHz to 45.0 MHz and features a metal surface mount package with four terminals. The component exhibits an aging rate of 3 PPM per first year, a drive level of 100 µW, and a frequency stability of 0.002%. Calibration tolerances are available in options including ±5ppm, ±7.5ppm, ±10ppm, and ±20ppm. The unit supports tape and reel packaging and complies with RoHS standards.

Oscillators Feature Summary

• Parallel fundamental quartz crystal construction for stable oscillation
• Metal surface mount package design ensuring reliable physical integrity
• Configurable calibration tolerance options for precise frequency accuracy

Oscillators Applications

• General purpose timing circuits requiring surface mount integration
• Electronic systems utilizing standard quartz oscillator topologies
• Consumer electronics compatible with lead-free manufacturing processes

Oscillators Procurement Notes

Verify the specific calibration tolerance suffix required for your application against the manufacturer's option codes. Confirm that the selected frequency falls within the 9.20 MHz to 45.0 MHz operational range. Ensure compatibility with the specified 100 µW drive level and load conditions prior to finalizing procurement orders.

Oscillators Selection Notes

Select this component when a parallel fundamental mode is required with a metal lid package. Consider the available calibration tolerance options to meet system frequency accuracy requirements. Verify that the operating temperature range and physical dimensions align with the target board layout constraints.

Oscillators Part Context

This part belongs to the GSX-641 series family of surface mount crystals from Golledge Electronics. The series offers various frequency ranges and package configurations. The MA06024 specifically denotes a metal package variant with defined electrical parameters suitable for general timing applications.

Oscillators Replacement Considerations

Consult official documentation for direct substitutes. Cross-reference frequency, package type, and electrical specifications before substituting.
