MADR-010410-000100

Overview

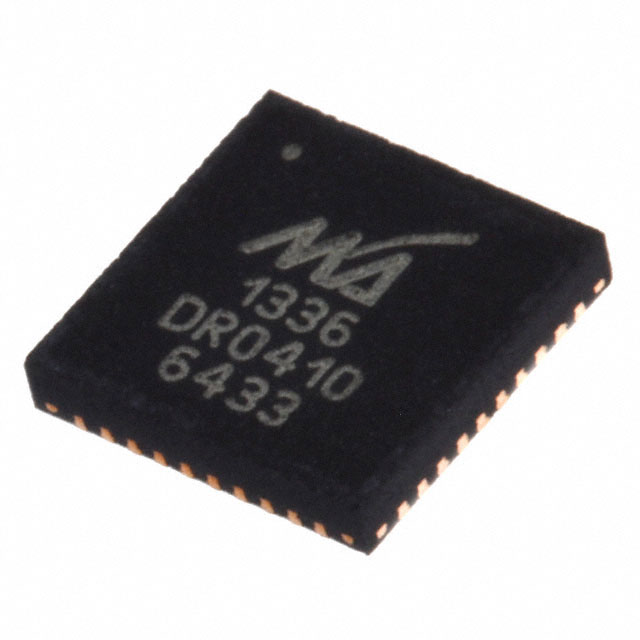

The MADR-010410 is a transmit/receive module driver IC designed for multifunction T/R modules. It provides 6-bit serial/parallel logic control and T/R switch control for GaAs-based T/R modules, as well as 6-bit S/P driver functionality for attenuators or phase shifters. The device utilizes high-speed analog CMOS technology to achieve low power consumption at moderate to high speeds. It is housed in a 40-QFN (5x5) package with exposed pad.

Feature Summary

• Provides 6-bit serial/parallel logic control for RF components
• Integrates T/R switch control for multifunction modules
• Utilizes high-speed analog CMOS technology for efficiency

Applications

• GaAs based T/R modules
• Attenuator control systems
• Phase shifter control systems

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging and tape specifications. Confirm that the requested part number matches the exact functional requirements for the target application. Cross-reference the component marking and datasheet revision dates to avoid discrepancies in manufacturing batches.

Selection Notes

Select this component when designing systems requiring integrated serial/parallel control and T/R switching for GaAs modules. Ensure the design supports the 40-QFN package footprint and thermal requirements. Verify compatibility with the required control logic levels and speed parameters defined in the official specification sheet.

Part Context

This driver belongs to MACOM Technology Solutions' portfolio of RF IC drivers. It is specifically engineered for use in complex transmit/receive architectures where space and power efficiency are critical constraints. The integration of both logic control and switching functions simplifies the overall module design.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
