MADR-010410-TR0500

Overview

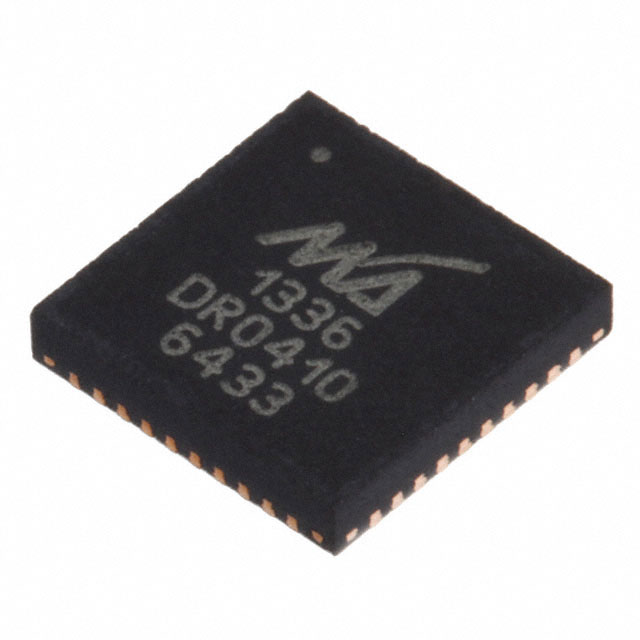

The MADR-010410-TR0500 is a transmit/receive module driver IC manufactured by MACOM Technology Solutions. It provides 6-bit serial/parallel logic control and T/R switch control for multifunction T/R modules. Designed for GaAs-based T/R modules, it also serves as a 6-bit S/P driver for attenuators or phase shifters. The device utilizes high-speed analog CMOS technology to achieve low power consumption at moderate to high speeds. It is housed in a 40-QFN (5x5) package with exposed pad.

Feature Summary

• Provides 6-bit serial/parallel logic control and T/R switch control
• Optimized for GaAs-based T/R modules
• Utilizes high-speed analog CMOS technology
• Designed for low power dissipation

Applications

• Multifunction T/R modules
• GaAs-based T/R modules
• Attenuator control
• Phase shifter control

Procurement Notes

Verify the specific ordering suffix TR0500 against the manufacturer's current datasheet to ensure compatibility with required tape-and-reel specifications. Confirm that the 40-VFQFN package with exposed pad matches the target PCB footprint. Check RoHS3 compliance status and MSL rating prior to assembly planning.

Selection Notes

Select this component when designing systems requiring integrated serial/parallel control and T/R switching for GaAs modules. The CMOS control logic offers low power dissipation suitable for moderate to high-speed applications. Ensure the design supports the 40-QFN thermal requirements due to the exposed pad structure.

Part Context

This part belongs to the MADR-010410 family of RF IC drivers from MACOM Technology Solutions. It is classified under general RF ICs and other RF ICs and modules. The base part number is MADR-010410, with the TR0500 suffix indicating the specific packaging configuration.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult MACOM Technology Solutions for alternative components if this specific model is unavailable.
