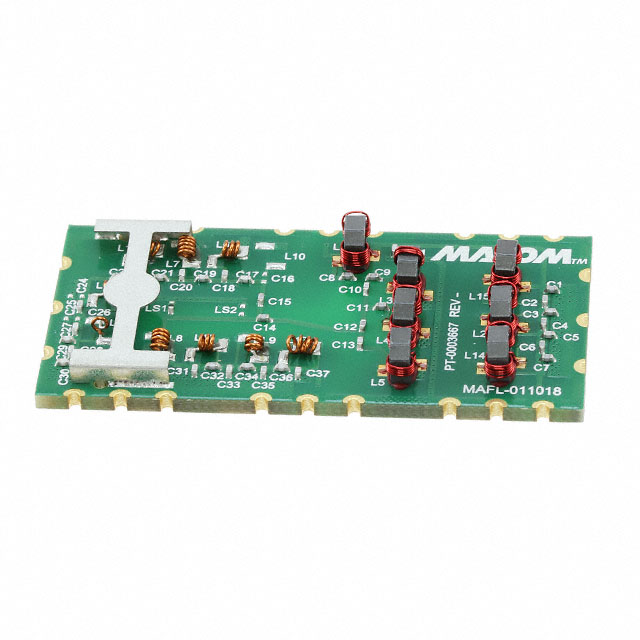

MAFL-011018

Description：TRIPLEXER FILTER MOCA
Series：-
Mfr：MACOM Technology Solutions
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3feb56592a58 Category: RF Misc ICs and Modules Brand: MACOM Technology Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRIPLEXER FILTER MOCA
Series：-
Mfr：MACOM Technology Solutions
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Triplex Filter
Frequency：5MHz ~ 3GHz
RF Type：MoCA
Secondary Attributes：-
Mounting Type：Surface Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

MAFL-011018

Overview

The MAFL-011018 is a surface-mount triplexer filter designed for MoCA applications, operating within a frequency range of 5 MHz to 3 GHz. It features three transmission paths to enable full triplexer functionality in a low-profile package. The component serves as a replacement for CAN triplex filters in space-constrained customer premises equipment (CPE). It is manufactured by MACOM Technology Solutions and utilizes a surface-mount configuration suitable for high-performance wired broadband systems.

Feature Summary

Provides three distinct transmission paths for complete triplexer operation
Designed specifically for MoCA application requirements
Low-profile surface-mount construction for space-constrained environments

Applications

MoCA network implementations
Customer premises equipment (CPE)
Wired broadband infrastructure

Procurement Notes

Verify the exact part number against official MACOM documentation to ensure compatibility with specific system designs. Confirm that the surface-mount package meets the mechanical constraints of the target PCB layout. Ensure that the frequency specifications align with the intended MoCA operational bands before integration into the final product assembly.

Selection Notes

Select this component when a compact solution is required for MoCA signal filtering in dense electronic assemblies. It is appropriate for designs replacing larger CAN triplex filters where board real estate is limited. Consider its suitability for high-performance wired broadband applications requiring reliable surface-mount integration without compromising signal integrity across the specified frequency range.

Part Context

This device belongs to a series of surface-mount triplex filters from MACOM, including models like MAFL-011023 and MAFL-011026. These components are engineered to support high-performance, repeatable operations in wired broadband markets. They address the industry need for miniaturized filtering solutions that maintain signal quality while reducing the physical footprint in modern communication hardware.
