MAMF-011146-TR0500

Overview

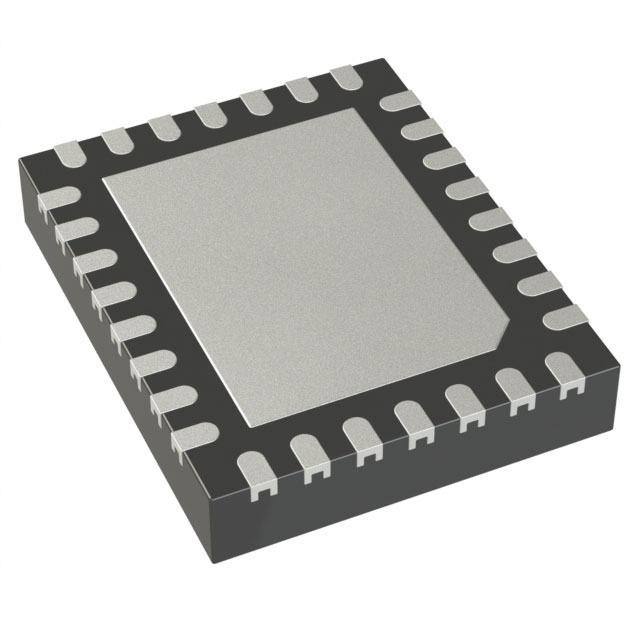

The MAMF-011146-TR0500 is a Ka-band RF switch IC designed for high-power applications. It features a single-pole double-throw (SPDT) configuration utilizing PIN diode technology with an integrated driver circuit. The device operates across a frequency range of 20 to 44 GHz and is housed in a compact 30-pin PQFN package measuring 5x4 mm. This broadband component provides high linearity and includes a 50-ohm termination, ensuring stable performance in demanding radio frequency environments.

Feature Summary

• Integrates SPDT PIN switch functionality with a dedicated driver circuit within a single package
• Engineered for high power handling capabilities suitable for demanding RF applications
• Provides broadband operation covering the Ka-band spectrum from 20 to 44 GHz
• Features a 50-ohm terminated output structure for improved signal integrity

Applications

• Cellular infrastructure systems requiring high-frequency switching
• Radar systems operating in the Ka-band range
• Point-to-point microwave communication links
• Satellite communication ground stations

Procurement Notes

Verify the specific ordering suffix TR0500 against the manufacturer's current datasheet to confirm packaging details and reel specifications. Ensure compatibility with the intended PCB footprint, as the component utilizes a 30-pin PQFN package. Cross-reference technical parameters such as insertion loss and isolation with the latest official documentation before finalizing procurement orders.

Selection Notes

Select this component when designing systems that require high-power handling and broadband coverage specifically within the 20 to 44 GHz range. The integrated driver simplifies control logic, making it suitable for space-constrained designs. Evaluate thermal management requirements due to the high-power nature of the PIN diode switch architecture.

Part Context

This part belongs to MACOM's portfolio of Ka-band RF switches, targeting advanced wireless and radar technologies. The MAMF series emphasizes high linearity and power handling in compact form factors. It represents a specialized solution for engineers needing reliable switching performance in high-frequency millimeter-wave applications without external driver complexity.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official substitution guide or contact technical support directly for validated alternatives.
