MAPS-011021-TR0500

Overview

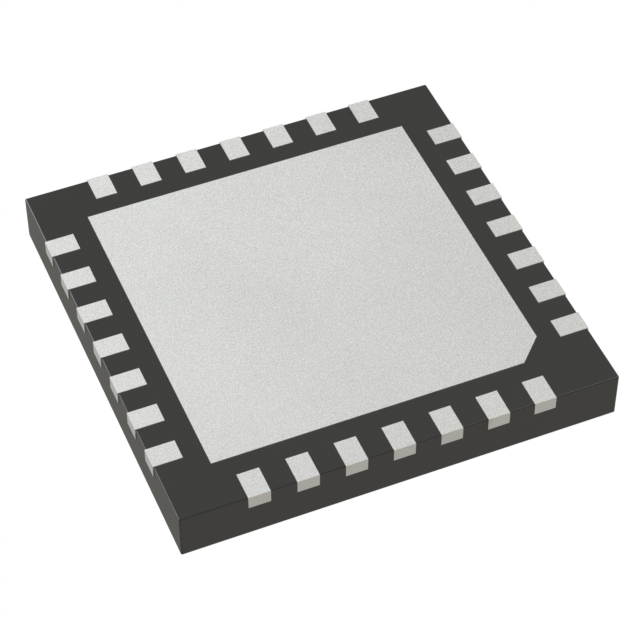

The MAPS-011021-TR0500 is a silicon-based phase detector and shifter manufactured by MACOM Technology Solutions. It operates within an input frequency range of 900 MHz to 1.2 GHz. The device provides 6-bit phase control, enabling precise adjustments across the operational bandwidth. It utilizes a PQFN-28 surface-mount package suitable for SMD/SMT installation. The component functions with a supply voltage between 3 V and 5.5 V. It supports an operating temperature range from -40°C to +85°C. The unit is moisture sensitive and available in cut tape or reel packaging.

Feature Summary

• Provides 6-bit digital phase shifting capability
• Delivers precise phase control with low rms phase error
• Operates as a monolithic microwave integrated circuit (MMIC)
• Supports continuous phase adjustment from 0° to 360°

Applications

• General purpose RF phase control systems
• Wireless communication infrastructure components
• Beamforming network implementations
• Phased array antenna calibration circuits

Procurement Notes

Verify the specific ordering suffix TR0500 to confirm the reel quantity of 500 units. Ensure compatibility with the PQFN-28 footprint during PCB layout. Confirm moisture sensitivity level handling requirements are met before reflow soldering. Check RoHS compliance status through official manufacturer documentation prior to final procurement approval.

Selection Notes

Select this component when precise phase shifting is required within the 900 MHz to 1.2 GHz band. Consider the 6-bit resolution for applications needing fine phase steps. Evaluate the thermal performance within the specified -40°C to +85°C range. Assess the power supply constraints against the 3 V to 5.5 V operating window for system integration.

Part Context

This part belongs to the MAPS series of phase shifters from MACOM. It represents a silicon MMIC solution designed for wireless and RF integrated circuits. The device integrates phase detection and shifting functions into a compact surface-mount package. It serves as a key component for managing signal phase in modern radio frequency systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult MACOM technical support for direct replacements or cross-reference options based on specific electrical requirements.

FAQ

What is the phase resolution of the MAPS-011021?

The device offers 6-bit phase resolution, allowing for discrete phase steps.

Is the MAPS-011021-TR0500 moisture sensitive?

Yes, the component is classified as moisture sensitive and requires appropriate handling precautions.
