MAX40016ANL+T

Instrumentation, Op Amps, Buffer Amps Overview

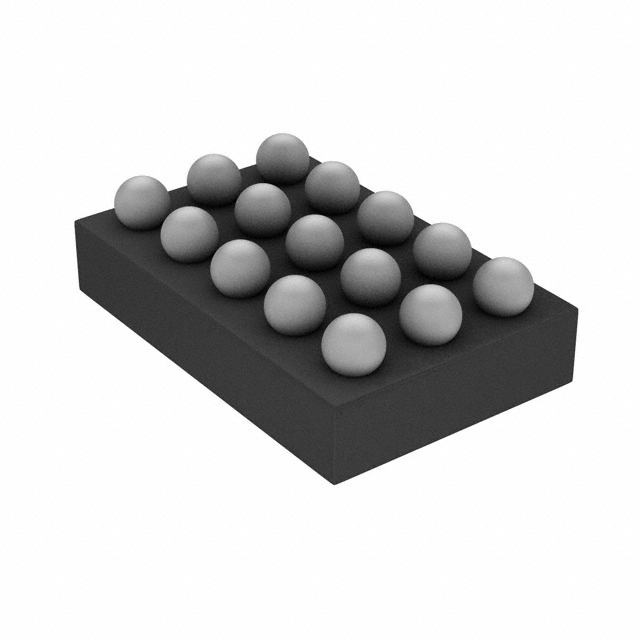

The MAX40016ANL+T is a wide-range current sense amplifier featuring an integrated current sense element. It operates with a supply voltage range of 2.5 V to 60 V and supports common-mode voltages from -100 mV to 40 V. The device offers a gain bandwidth product of 700 kHz, input offset voltage of 20 µV, and supply current of 800 µA. It provides high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), housed in a 15-WLP package.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Integrates a precision current sense element for simplified design
• Supports wide common-mode voltage range including negative values
• Provides high accuracy with low input offset voltage
• Operates over extended industrial temperature ranges

Instrumentation, Op Amps, Buffer Amps Applications

• High-side current sensing in battery management systems
• Overcurrent protection in industrial motor drives
• Current monitoring in power distribution units
• Fault detection in automotive electronics

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix ANL+T against the manufacturer's latest datasheet to confirm pinout and electrical characteristics. Ensure compatibility with your system's voltage levels and thermal requirements. Check for RoHS compliance status as per regional regulations. Confirm availability through authorized distributors only.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when high-voltage common-mode operation is required alongside precise current measurement. The integrated sense element reduces board space compared to discrete solutions. Consider the 700 kHz bandwidth for dynamic load applications. Evaluate thermal performance within the 15-WLP package for your specific power dissipation needs.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the MAX40016 series of current sense amplifiers designed by Analog Devices/Maxim Integrated. The series focuses on providing accurate current monitoring in high-voltage environments. The ANL+T designation indicates a specific package variant optimized for surface-mount assembly in compact electronic designs.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's cross-reference tools or technical support for verified alternatives.
