MB9BF568MPMC-G-JNE2

Microcontrollers Overview

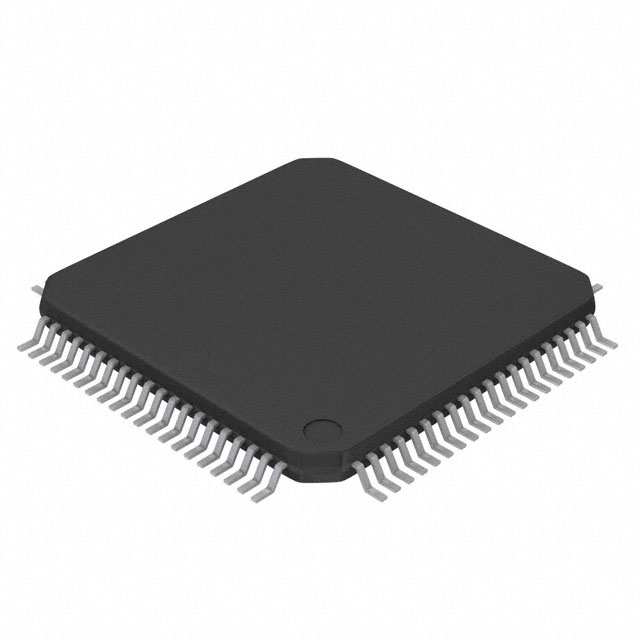

The MB9BF568MPMC-G-JNE2 is a 32-bit microcontroller based on the ARM Cortex-M4F core, operating at a maximum clock frequency of 160 MHz. It features 1056 kB of Flash program memory and 128 kB of SRAM data RAM. The device is housed in an LQFP-80 surface-mount package with 63 available I/O pins. It supports a supply voltage range of 2.7 V to 5.5 V and operates within a temperature range of -40°C to +125°C.

Microcontrollers Feature Summary

• Integrates an ARM Cortex-M4F processor core with FPU support for efficient digital signal processing.
• Includes high-resolution analog peripherals such as multiple 12-bit ADCs and DACs for precise signal acquisition.
• Provides comprehensive connectivity interfaces including CAN, LIN, USB, UART, I2C, and CSIO.

Microcontrollers Applications

• Automotive body control modules
• Industrial motor control systems
• Smart energy metering devices

Microcontrollers Procurement Notes

Verify the specific suffix 'G-JNE2' against official Infineon documentation to confirm lead-free status and RoHS compliance. Ensure the LQFP-80 package variant matches the design requirements. Confirm availability status as distribution channels may list obsolete or alternate versions.

Microcontrollers Selection Notes

Select this component when a robust automotive-grade MCU with significant Flash capacity is required. The 160 MHz performance suits complex control algorithms. Verify that the 63 I/O count and specific interface combinations meet the system's peripheral needs before finalizing the design.

Microcontrollers Part Context

This part belongs to the FM4 MB9B560R series, designed for demanding applications requiring high reliability. It shares architectural similarities with other members like the CY9BF567 and MB9BF566, differing primarily in memory size and pin count configurations within the same family ecosystem.

Microcontrollers Replacement Considerations

Direct substitutes include MB9BF566MPMC-G-JNE2 and MB9BF567MPMC-G-JNE2 from the same series. These alternatives offer lower memory capacities but maintain compatible pinouts and core functionality for migration purposes.
