MBR2X030A080

Diode Arrays Overview

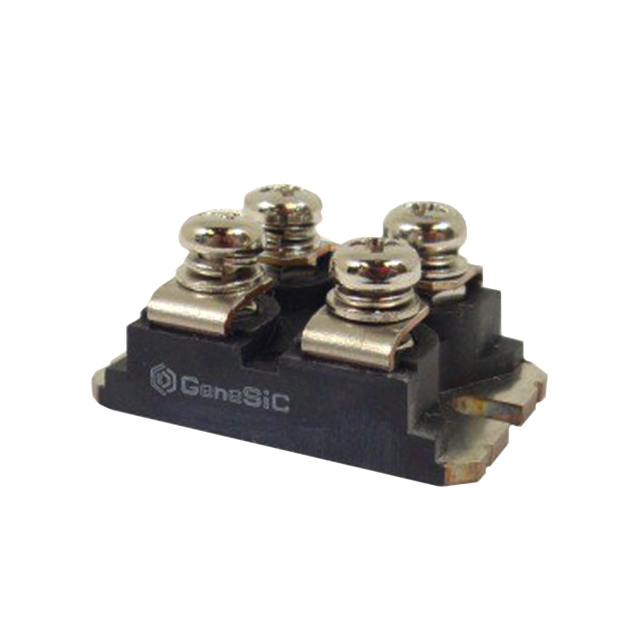

The GeneSiC Semiconductor MBR2X030A080 is a silicon Schottky rectifier module housed in an electrically isolated SOT-227 package. It provides a maximum recurrent peak reverse voltage of 80 V and supports an average forward current of 60 A per package. The device features a peak forward surge current capability of 500 A per leg and maintains an isolation voltage of 2500 V AC for one minute. Thermal resistance from junction to case is rated at 1.20 °C/W per leg. Operating temperatures range from -40 °C to +150 °C, with storage capabilities matching this span.

Diode Arrays Feature Summary

• Electrically isolated base plate design within the SOT-227 package
• High surge current handling capability for transient protection
• Non-ESD sensitive construction for robust assembly
• Schottky technology ensuring low forward voltage drop

Diode Arrays Applications

• DC-DC converter circuits requiring high efficiency
• Free-wheeling diode applications in power supplies
• Reverse polarity protection in automotive systems
• Solar panel bypass diode configurations

Diode Arrays Procurement Notes

Verify the specific datasheet revision date prior to ordering, as thermal and electrical parameters may be subject to updates by the manufacturer. Confirm that the SOT-227 mounting interface matches your heatsink specifications. Ensure that the 80 V rating aligns with your system's peak reverse voltage requirements under all operating conditions. Check for any recent discontinuation notices or lifecycle changes directly from the supplier.

Diode Arrays Selection Notes

Select this component when an electrically isolated Schottky solution is required for 80 V systems. The 60 A average current rating suits moderate power applications where low forward voltage drop improves overall efficiency. Consider the 1.20 °C/W thermal resistance for heatsink calculations. Verify that the 500 A surge rating exceeds your circuit's expected inrush currents to prevent device failure during startup or fault conditions.

Diode Arrays Part Context

This module belongs to the MBR2X series of silicon Schottky rectifiers designed for general-purpose power conversion. The SOT-227 package facilitates screw-mount installation on standard heatsinks. Unlike hermetically sealed metal cases, this plastic encapsulated variant offers cost-effective isolation for non-harsh environments while maintaining reliable performance up to 150 °C junction temperature.

Diode Arrays Replacement Considerations

Cross-reference with other 80 V, 60 A Schottky modules in the SOT-227 package. Verify pinout compatibility and thermal resistance values before substitution. Ensure the replacement part meets the same 2500 V isolation requirement.
