MBR6060PT

Diode Arrays Overview

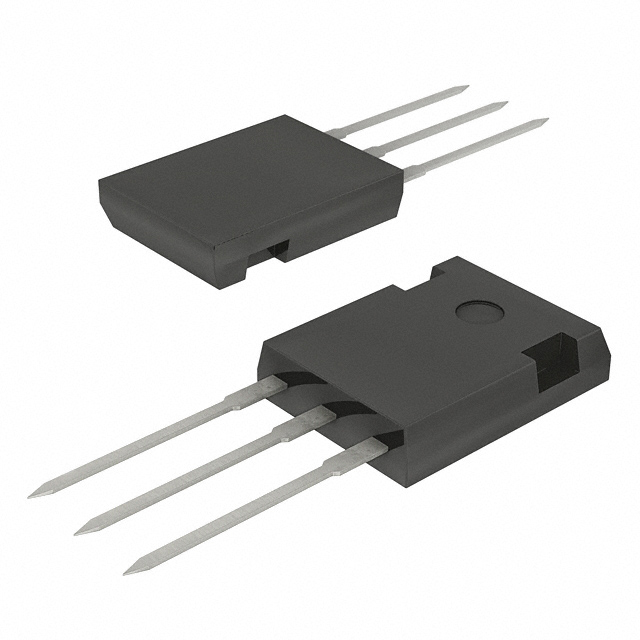

The MBR6060PT is a Schottky barrier rectifier manufactured by Taiwan Semiconductor, designed for high-efficiency power conversion applications. It features a 60A average forward current rating and a 60V maximum repetitive peak reverse voltage. The device utilizes silicon technology housed in a TO-247-3 through-hole package, providing robust thermal performance and mechanical stability. This component is engineered to minimize conduction losses while offering fast switching characteristics typical of Schottky diodes.

Diode Arrays Feature Summary

• Schottky barrier construction eliminates minority carrier storage effects for rapid switching
• Low forward voltage drop reduces conduction losses and system heat generation
• High surge current capability supports transient load conditions
• TO-247-3 package enables efficient heat dissipation via direct heatsink mounting

Diode Arrays Applications

• High-frequency switched-mode power supplies (SMPS)
• DC-DC converter output rectification stages
• Free-wheeling diodes in motor drive circuits
• Solar charge controller rectification

Diode Arrays Procurement Notes

Verify the specific datasheet revision and manufacturer lot traceability upon order confirmation. Confirm that the TO-247-3 pinout matches your PCB footprint requirements. Ensure compliance with RoHS directives if required by your assembly specifications. Request official test reports for forward voltage and leakage current limits before final acceptance.

Diode Arrays Selection Notes

Select this component when low forward voltage drop is critical for efficiency at high currents. The 60V rating suits low-voltage DC bus applications. Consider the thermal resistance of the TO-247-3 package and ensure adequate heatsinking for continuous 60A operation. Evaluate reverse leakage current increases at elevated junction temperatures for high-temperature environments.

Diode Arrays Part Context

This part belongs to the MBR60xxPT series from Taiwan Semiconductor, which offers various voltage ratings within the same 60A current class. The series is designed for general-purpose high-current rectification where efficiency and speed are prioritized over high-voltage blocking capabilities.

Diode Arrays Replacement Considerations

Cross-reference with other 60A 60V Schottky rectifiers in TO-247 packages. Verify pin compatibility and thermal characteristics before substituting with parts from different manufacturers.
