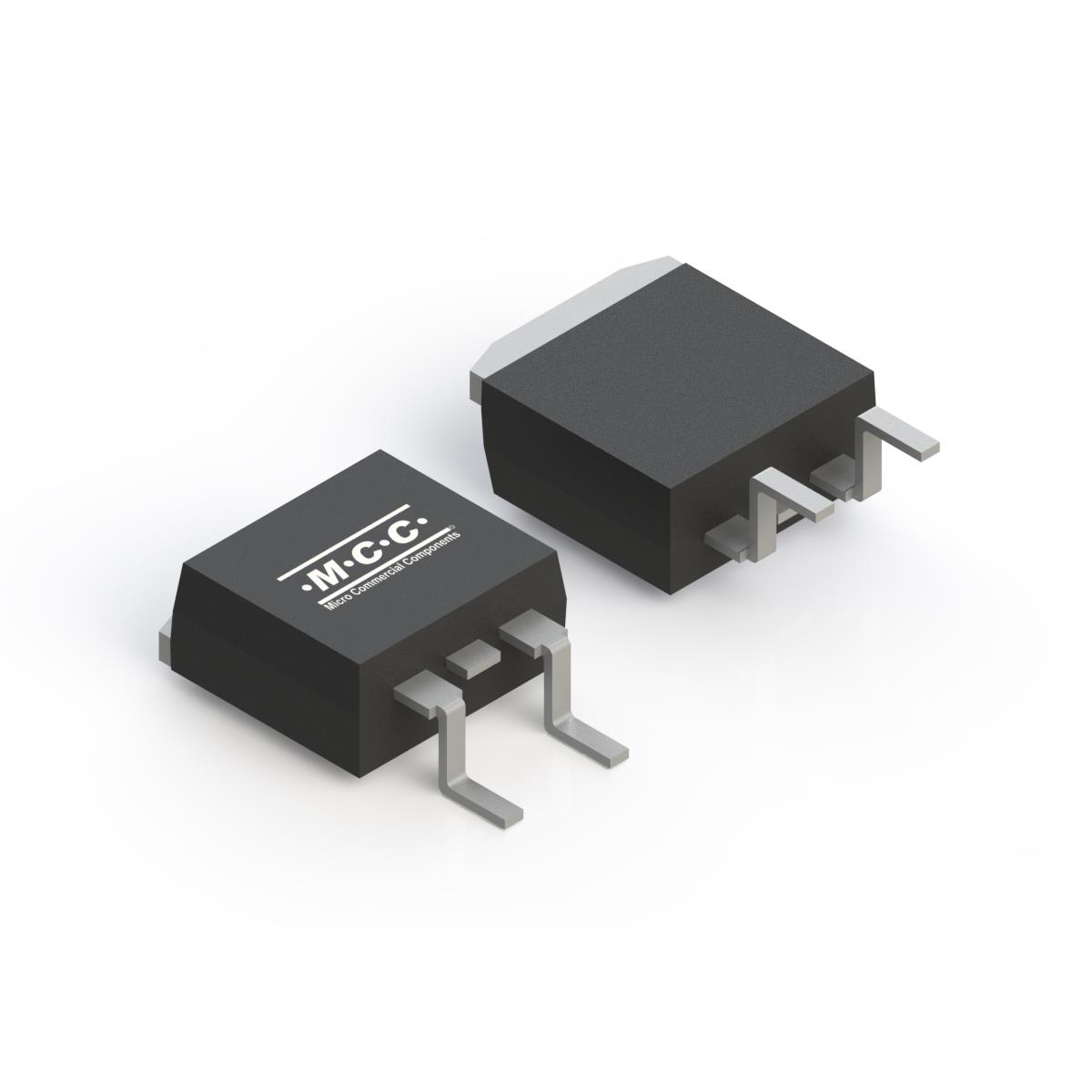

MBRB3060CTS-TP is listed in the Diode Arrays range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE ARRAY SCHOT 60V 30A TO-263. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for MBRB3060CTS-TP
- Description：DIODE ARRAY SCHOT 60V 30A TO-263
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io) (per Diode)：30A
- Voltage - Forward (Vf) (Max) @ If：750 mV @ 15 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 60 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for MBRB3060CTS-TP
Diode Arrays Overview
The MBRB3060CTS-TP is a Schottky Barrier Rectifier manufactured by Micro Commercial Components (MCC). It features a dual common cathode configuration in a D2PAK package. Key electrical parameters include a maximum repetitive reverse voltage of 60 V and an average rectified forward current of 30 A per device (15 A per diode). The typical forward voltage is 0.75 V at 15 A, with a maximum non-repetitive peak surge current of 200 A. Operating junction temperature ranges from -55°C to +150°C.
Diode Arrays Feature Summary
- Dual common cathode structure for efficient power conversion
- Low forward voltage drop characteristics
- High temperature solder exemption compliance
- Halogen-free green device construction
Diode Arrays Applications
- DC-DC converters
- Power supply circuits
- Free-wheeling diodes in inductive loads
Diode Arrays Procurement Notes
Verify the specific suffix 'CTS' against official MCC documentation to confirm pinout and thermal pad configurations. Ensure sourcing from authorized distributors to guarantee authenticity and traceability. Check RoHS compliance status as indicated by the 'P' suffix designation in ordering information.
Diode Arrays Selection Notes
Select this component for applications requiring low forward voltage and high surge current handling. Consider the 60 V rating and 30 A total current capacity relative to circuit requirements. Evaluate thermal resistance and derating curves for high-temperature environments.
Diode Arrays Part Context
This part belongs to the MBRB series of Schottky Barrier Rectifiers from Micro Commercial Components. It utilizes silicon technology and is housed in a surface-mount D2PAK package. The series is designed for general-purpose rectification with improved efficiency over standard PN junction diodes.
Diode Arrays Replacement Considerations
Consult official MCC substitution guides or datasheets for verified equivalent parts. Cross-reference electrical ratings such as voltage, current, and package type when evaluating alternatives.
