MBRBFL2060CT-TP

Diode Arrays Overview

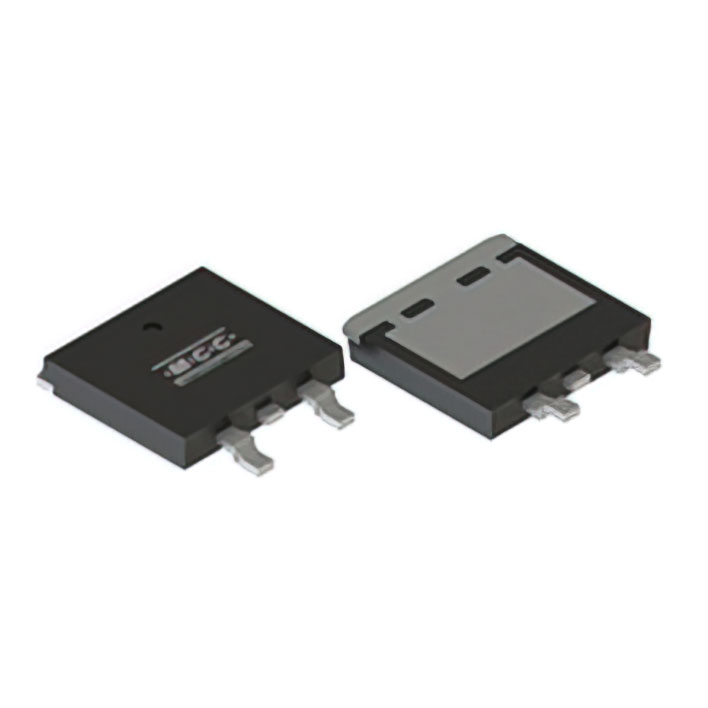

The MBRBFL2060CT-TP is a dual common cathode Schottky barrier rectifier manufactured by Micro Commercial Components. It features a TO-263AC (D2PAK) surface mount package with a low profile of approximately 1.7 mm. The device provides a total average forward current of 20 A, rated at 10 A per diode. It supports a peak repetitive reverse voltage of 60 V and a non-repetitive peak surge current of 150 A per diode. Electrical characteristics include a maximum forward voltage of 0.65 V at 10 A and a reverse leakage current of 0.39 mA at 125°C.

Diode Arrays Feature Summary

• Dual common cathode configuration for efficient power conversion
• Low forward voltage drop to minimize conduction losses
• Lead-free finish compliant with RoHS standards
• Moisture sensitivity level 1 for standard handling

Diode Arrays Applications

• DC-DC converters
• Free-wheeling diodes in inductive loads
• Power supply rectification circuits

Diode Arrays Procurement Notes

Verify the authenticity of the component by checking for authorized distributor markings. Ensure the ordering suffix matches the required tape and reel quantity of 1500 pieces. Confirm that the package variant corresponds to the TO-263AC outline specified in the datasheet to guarantee proper thermal and mechanical fit during assembly.

Diode Arrays Selection Notes

Select this component when a compact surface mount solution is required for high-current applications. The dual common cathode design simplifies circuit layout compared to discrete single diodes. Consider the thermal resistance values for heat sinking requirements in enclosed environments. Verify that the 60 V rating aligns with the system's peak reverse voltage demands.

Diode Arrays Part Context

This part belongs to MCC's 20 Amp Low VF Schottky Barrier Rectifiers series. It utilizes silicon technology optimized for low power loss. The device is designed for general-purpose rectification where efficiency and size are critical constraints. It serves as an alternative to through-hole packages in modern PCB designs.

Diode Arrays Replacement Considerations

Direct replacements must match the 60 V, 20 A (dual) specification and TO-263AC package. Verify pinout compatibility, specifically the common cathode arrangement. Check forward voltage and thermal resistance parameters to ensure equivalent performance in the target application.
