MBRH24040R

Single Diodes Overview

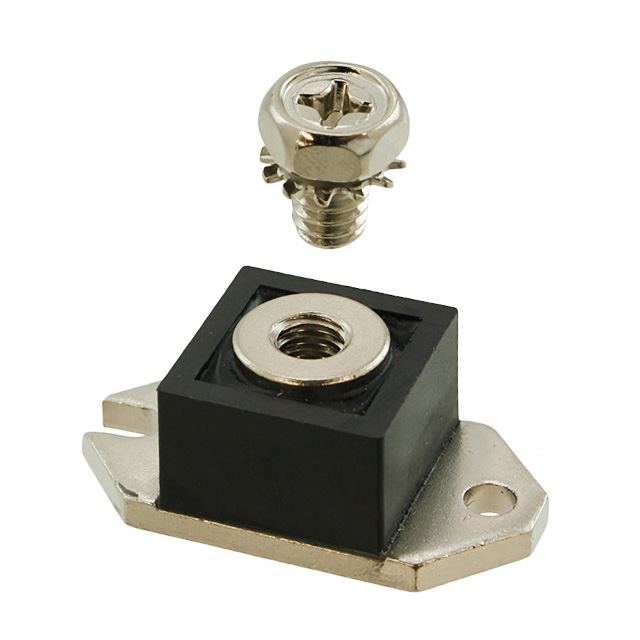

The MBRH24040R is a silicon power Schottky diode module from the MBRH240 series, manufactured by GeneSiC Semiconductor. It features a D-67 (Half Pak) package with screw mount installation. The device supports an average forward current of 240 A and a repetitive peak reverse voltage of 40 V. Key electrical parameters include a maximum instantaneous forward voltage of 0.72 V and a thermal resistance junction-to-case of 0.30 °C/W. The component operates within a temperature range of -55 °C to +150 °C.

Single Diodes Feature Summary

• High surge capability for robust performance under transient conditions
• D-67 package design optimized for efficient thermal management
• Non-ESD sensitive construction for simplified handling

Single Diodes Applications

• DC/DC converter circuits
• Free-wheeling rectification in power supplies
• Low voltage high current rectification applications

Single Diodes Procurement Notes

Verify the specific part number against official GeneSiC Semiconductor documentation to confirm lead time and availability status. Ensure the procurement channel provides valid traceability and authenticity guarantees. Confirm that the 'R' suffix designation matches the required reversed terminal configuration for your circuit layout before finalizing orders.

Single Diodes Selection Notes

Select this module when a 40 V rating is required within the MBRH240 family. The D-67 package facilitates direct mounting to heatsinks via screw terminals. Verify that the system's thermal design can accommodate the specified junction-to-case thermal resistance. Ensure the operating environment remains within the stated -55 °C to +150 °C temperature limits for reliable operation.

Single Diodes Part Context

This component belongs to the MBRH240 series of silicon Schottky diode modules. The series offers various voltage ratings ranging from 20 V to 40 V while maintaining a consistent 240 A average forward current capacity. All variants share the same D-67 package form factor and thermal characteristics, allowing for standardized mechanical integration across different voltage requirements.

Single Diodes Replacement Considerations

Compatible substitutes within the same series include MBRH24020R and MBRH24030R. These parts share identical current and thermal specifications but differ in reverse voltage ratings. Verify that the lower voltage ratings of these alternatives are sufficient for the target application circuit.
