MBT-283+

Overview

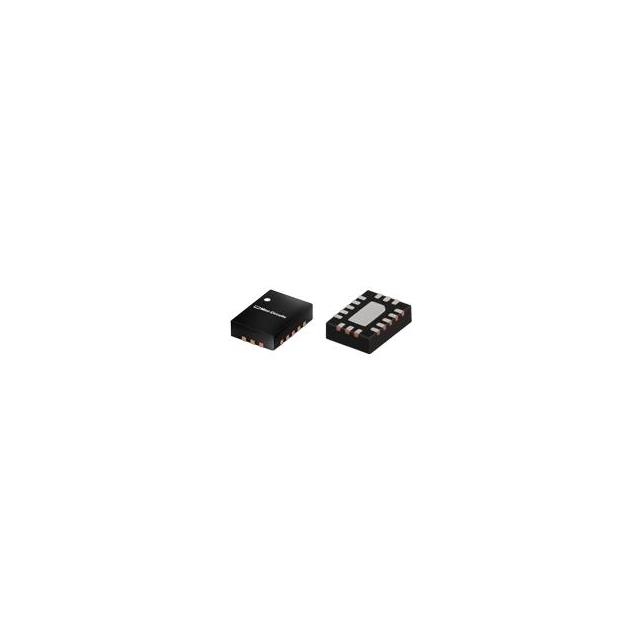

The MBT-283+ is an ultra-wideband MMIC surface mount bias tee from Mini-Circuits, designed for applications ranging from 1.5 GHz to 28 GHz. It features low insertion loss and excellent return loss performance across its frequency range. The component supports a maximum RF input power of 30dBm. It is housed in a compact 16-MCLP package with dimensions of 3.5x2.5 mm, facilitating integration into high-density RF circuits.

Feature Summary

• Ultra-wideband operation covering frequencies from 1.5 GHz to 28 GHz
• Low insertion loss and excellent return loss characteristics
• Compact 16-MCLP surface mount packaging for space-constrained designs

Applications

• RF and microwave circuit biasing
• High-frequency signal processing systems
• Test and measurement equipment front ends

Procurement Notes

Verify the specific datasheet version and mechanical drawings provided by Mini-Circuits or authorized distributors before finalizing the design. Ensure that PCB layout guidelines for the 16-MCLP package are strictly followed to maintain electrical performance. Confirm that the operating environment and power requirements align with the component's specified limits.

Selection Notes

Select the MBT-283+ when a wide bandwidth up to 28 GHz is required in a minimal footprint. Consider its 30dBm power handling capability for robust signal paths. Evaluate the trade-off between its ultra-wideband coverage and specific insertion loss requirements compared to narrower band alternatives.

Part Context

This component belongs to Mini-Circuits' line of MMIC bias tees, which are essential for providing DC bias to active RF components while isolating the RF signal path. The MBT-283+ specifically addresses the need for high-frequency performance in modern communication and radar systems.

Replacement Considerations

Consult Mini-Circuits official documentation for direct substitutes or updated models within the MBT series. Verify compatibility with existing board layouts if considering alternative packages.
