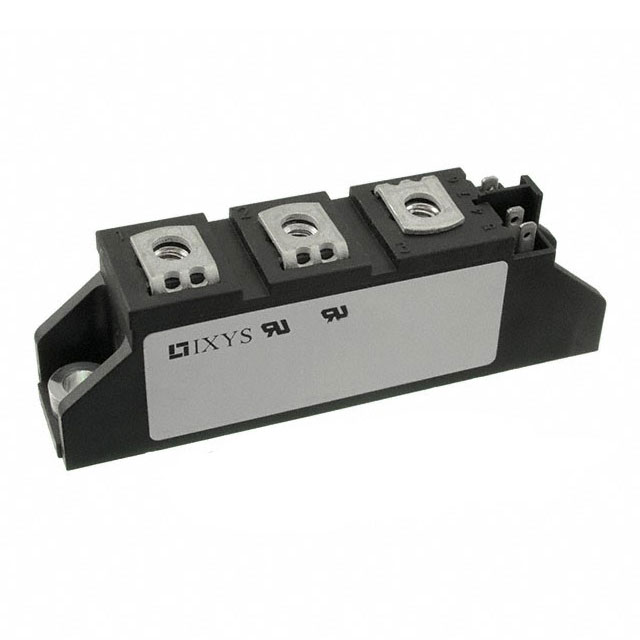

MCC19-08IO1B

$13.04

Description：MOD THYRISTOR DUAL 800V TO-240AA
Series：-

SKU:54bf46b5a942 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOD THYRISTOR DUAL 800V TO-240AA
Series：-
Mfr：IXYS
Package：Box
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：800 V
Current - On State (It (AV)) (Max)：25 A
Current - On State (It (RMS)) (Max)：40 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：400A, 420A
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：TO-240AA
Voltage - Gate Trigger (Vgt) (Max)：1.5 V
Current - Gate Trigger (Igt) (Max)：100 mA
Current - Hold (Ih) (Max)：200 mA
Grade：-
Qualification：-

Download product information

MCC19-08IO1B

Overview

The MCC19-08IO1B is a thyristor module manufactured by IXYS, belonging to the MCC19 series. It features an output current of 19 A and a voltage rating of 800 V. The component utilizes silicon technology and is housed in a TO-240AA package with screw mount installation style. It is classified as a discrete power module.

Feature Summary

Screw mount installation for secure mechanical attachment
Silicon-based thyristor construction
TO-240AA packaging format

Applications

Power electronics systems requiring controlled rectification
Industrial motor drive circuits
General purpose AC/DC conversion applications

Procurement Notes

Verify the manufacturer part number MCC19-08IO1B against official IXYS documentation to confirm specifications. Ensure the TO-240AA package type matches the design requirements. Check RoHS compliance status if restricted substances are a constraint. Confirm the 800V rating aligns with the circuit voltage needs.

Selection Notes

Select this module when a 19 A continuous current and 800 V blocking voltage are required in a compact form factor. The TO-240AA package suits designs needing screw mounting. Compare against other MCC19 variants if different voltage or current ratings are needed. Verify thermal management capabilities for the specific application environment.

Part Context

This component is part of the IXYS MCC19 series of thyristor modules. The series offers various current and voltage combinations within the same package family. The MCC19-08IO1B specifically provides 19 A at 800 V. Other members include higher voltage options like the MCC19-12IO1B.

Replacement Considerations

Check for direct substitutes within the MCC19 series with matching electrical ratings. Verify pinout compatibility before replacing. Consult IXYS documentation for any updated versions or alternative packages offering similar performance.
