MCC310-18IO1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：THYRISTOR DIODE MODULE
- Series：-
- Mfr：IXYS
- Package：Bulk
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：320 A
- Current - On State (It (RMS)) (Max)：500 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：9200A, 9800A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：150 mA
- Grade：-
- Qualification：-
Download product information
Overview

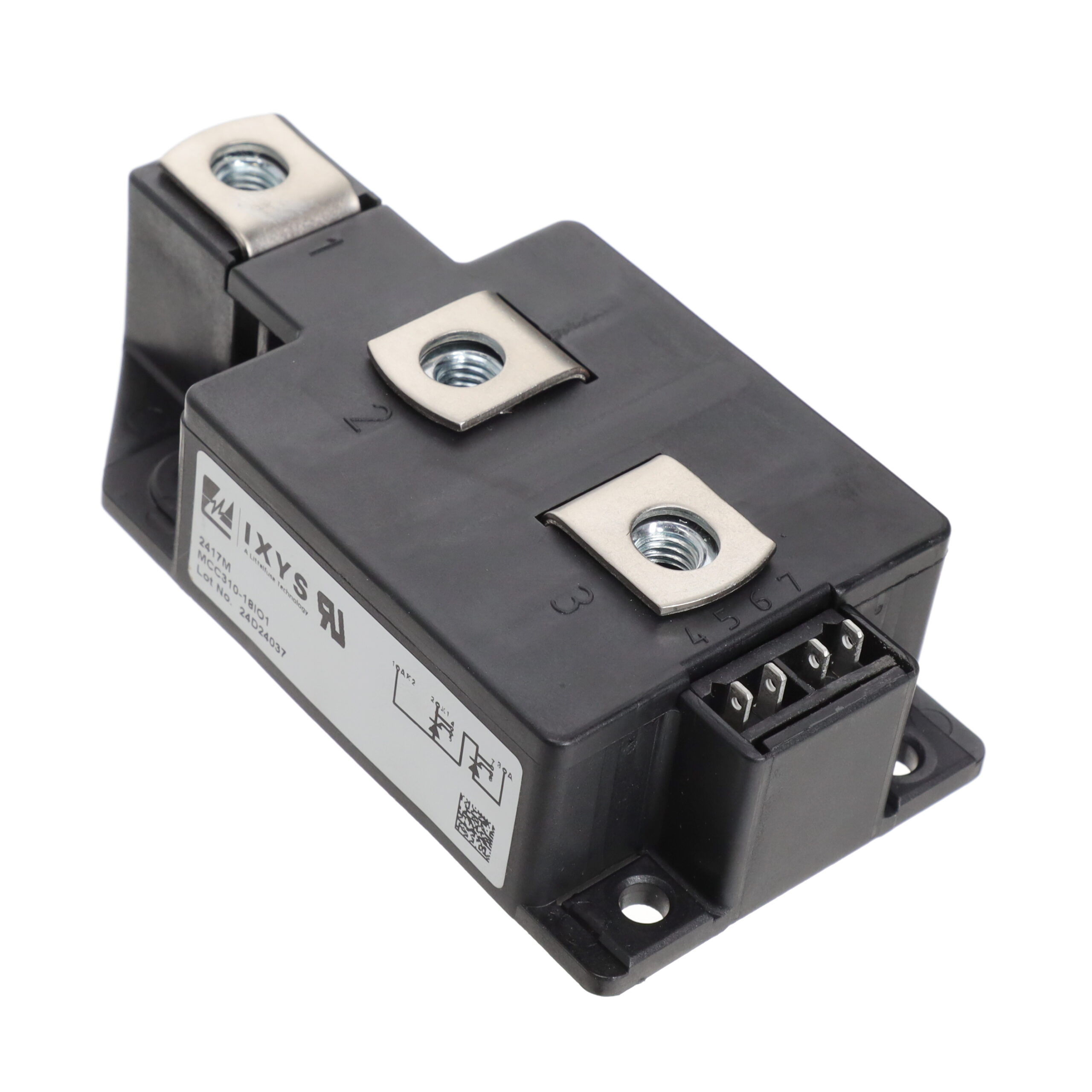

The IXYS MCC310-18IO1 is a thyristor module with a maximum repetitive peak reverse voltage of 1800 V and an RMS on-state current rating of 500 A. It features a seven-pin configuration for panel mounting, utilizing direct copper bonded Al2O3 ceramic base plates. The device supports a maximum junction temperature of 140°C and offers an isolation voltage of 3600 Vrms. Key electrical parameters include a gate trigger current of 150 mA at 25°C, a peak forward surge current of 9800 A (8.3 ms), and a typical on-state voltage of 1.32 V at 600 A.
Feature Summary
- Features keyed gate/cathode twin pins for simplified connection
- Utilizes planar passivated chips for improved reliability
- Provides high isolation voltage capability
Applications
- Motor control systems
- Power converter circuits
- Industrial furnace heating and temperature control
- Lighting control applications
- Contactless switches
Procurement Notes
Verify the specific part number MCC310-18IO1 against official manufacturer documentation to confirm availability and exact specifications. Ensure that sourcing channels provide genuine components from authorized distributors or verified suppliers to maintain product integrity and performance standards.
Selection Notes
Select this module based on its 1800 V blocking capability and 500 A continuous current rating. Consider the thermal management requirements associated with the specified junction-to-case thermal resistance values. Verify compatibility with the required gate trigger characteristics and ensure the mechanical mounting torque aligns with the specified M5 and M8 terminal connections.
Part Context
This component belongs to the MCC310 series of thyristor modules manufactured by IXYS. The series includes variants with different voltage ratings, such as the MCC310-08io1 through MCC310-16io1. These modules share common physical dimensions and mounting styles, facilitating design flexibility within power electronics architectures requiring high current handling.
Replacement Considerations
Direct substitutes are not explicitly listed in the provided datasheet. Evaluate other MCC310 series variants for voltage adjustments. Cross-compatibility with other manufacturers requires verification of pinout, thermal resistance, and electrical ratings against the original design specifications.
