Product Detailed Parameters
- Description：SCR THY PHASE LEG 1600V WC-501
- Series：-
- Mfr：IXYS
- Package：Tray
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.6 kV
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：14500A @ 50Hz
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：WC-501
- Voltage - Gate Trigger (Vgt) (Max)：-
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

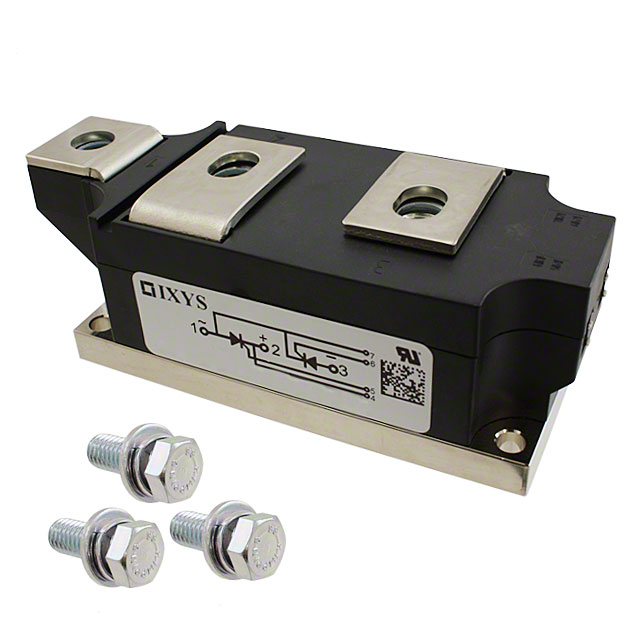

The MCC501-16IO2 is a dual thyristor module manufactured by IXYS, belonging to the MCC501 series. It utilizes silicon technology and features a rated repetitive off-state voltage (VDRM) of 1.6 kV. The device has a maximum holding current (Ih) of 300 mA, with a gate trigger voltage (Vgt) of 2.5 V and a gate trigger current (Igt) of 250 mA. It operates within a temperature range of -40°C to +125°C. The component is supplied in bulk packaging and weighs approximately 1.500 g.
Feature Summary
- Dual thyristor configuration for integrated control applications
- High voltage blocking capability suitable for power switching
- Silicon-based construction for reliable thermal performance
Applications
- Industrial motor control systems
- Power conversion equipment
- General industrial heating controls
Procurement Notes
This component is listed as End-of-Life (EOL) or discontinued by the manufacturer. Availability is restricted, and it may not be sold in all regions through standard distributors. Verification of current stock status and alternative sourcing channels is required before procurement planning.
Selection Notes
Designers should verify that the 1.6 kV voltage rating and 300 mA holding current meet system requirements. Consider the dual configuration benefits versus single units. Due to the EOL status, long-term supply chain stability must be assessed, and pin-compatible alternatives from other manufacturers should be evaluated for future production needs.
Part Context
The MCC501-16IO2 is part of IXYS's broader MCC series of SCR modules. This series typically offers various current and voltage ratings packaged in standardized forms like WC-500 or similar screw-mount configurations, designed for robust industrial environments requiring high-power thyristor switching.
Replacement Considerations
As this part is discontinued, direct substitutes are not officially confirmed. Engineers should look for dual thyristor modules with comparable 1.6 kV ratings and similar package dimensions. Cross-referencing datasheets for electrical parameters and mechanical footprint is essential for successful replacement.
