MCG09P06HE3-TP

Single FETs, MOSFETs Overview

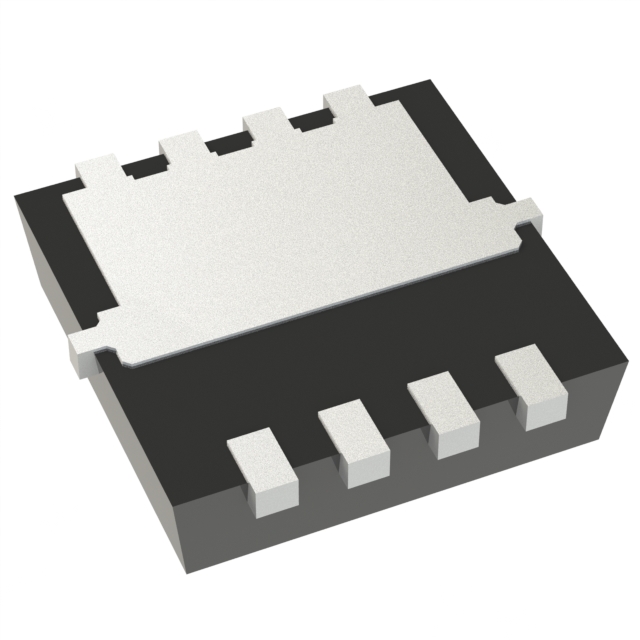

The MCG09P06HE3-TP is a P-channel Power MOSFET manufactured by Micro Commercial Components (MCC). It utilizes Trench MOSFET technology and is housed in a PDFN3333-B package. The device features a drain-source breakdown voltage of -60 V and a continuous drain current of -9 A. Key electrical parameters include a maximum on-resistance of 170 mΩ at VGS=-10V and 220 mΩ at VGS=-4.5V. It supports a total power dissipation of 28 W, with thermal resistances of 60°C/W junction-to-ambient and 4.5°C/W junction-to-case. The component operates within a temperature range of -55°C to +150°C.

Single FETs, MOSFETs Feature Summary

• AEC-Q101 qualified for automotive reliability standards
• Trench MOSFET technology for optimized performance
• Designed for excellent heat dissipation capabilities
• Moisture sensitivity level 1 compliant

Single FETs, MOSFETs Applications

• Automotive electronic systems requiring robust power switching
• General purpose power management circuits
• Low side load switch applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix and packaging configuration against official MCC documentation before procurement. Confirm that the component meets all required environmental compliance standards, including RoHS and halogen-free specifications. Ensure that the source is an authorized distributor to guarantee genuine parts and full traceability. Check for any specific handling or storage requirements related to its moisture sensitivity level.

Single FETs, MOSFETs Selection Notes

Select this component when a P-channel MOSFET with a -60 V rating and high current capability is required. Consider the PDFN3333-B package for applications needing efficient thermal management. Evaluate the on-resistance characteristics at the intended gate drive voltage to ensure optimal efficiency. Verify compatibility with the target application's operating temperature range and automotive qualification needs.

Single FETs, MOSFETs Part Context

This part belongs to the MCG series of Power MOSFETs from Micro Commercial Components. It is designed as a replacement or upgrade for standard planar MOSFETs in power switching applications. The PDFN3333-B package provides a compact footprint with enhanced thermal performance compared to traditional packages.

Single FETs, MOSFETs Replacement Considerations

Check for direct substitutes within the same MCC series or other manufacturers offering identical pinouts and electrical ratings. Ensure that any replacement maintains the same package type and thermal characteristics.
