MCIMX6G3DVM05AA-NXP

Overview

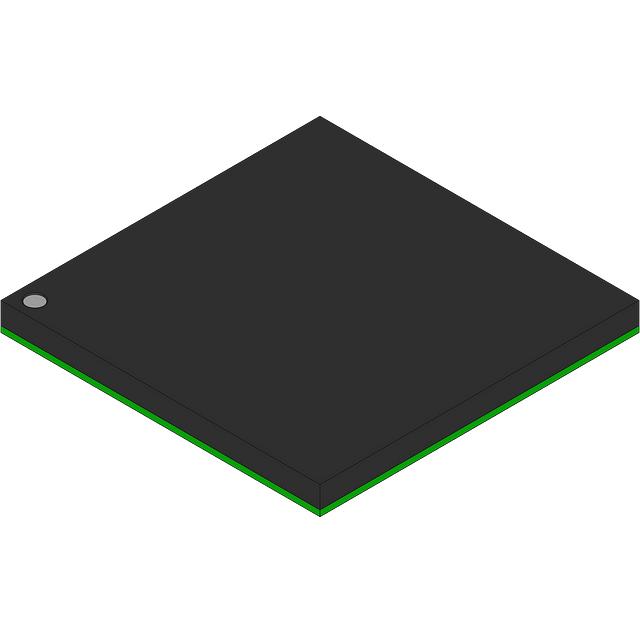

The MCIMX6G3DVM05AA is a specialized application processor from the NXP i.MX 6UltraLite series. It features a single-core ARM Cortex-A7 processor with a maximum clock frequency of 528 MHz and a 32-bit data bus width. The device is housed in a 289-LFBGA package, specifically identified as a 289-MAPBGA (14x14) footprint. It supports external memory types including LPDDR2, DDR3, and DDR3L. The component operates within a temperature range of 0°C to 95°C.

Feature Summary

• Integrates an ARM Cortex-A7 core for embedded processing tasks
• Includes NEON SIMD multimedia capabilities and DSP support
• Provides extensive connectivity interfaces such as Ethernet, USB, CAN, and SPI
• Incorporates hardware security features including A-HAB and CAAM

Applications

• Industrial control systems
• Consumer electronics devices
• Human-machine interface (HMI) panels

Procurement Notes

Verify the specific suffix 'AA' against current manufacturer documentation, as it may indicate a legacy or obsolete status compared to newer revisions like 'AB'. Confirm that the 289-LFBGA pinout matches the target PCB design. Check for moisture sensitivity levels and reflow soldering profile requirements prior to assembly. Ensure supply chain availability given potential end-of-life notifications associated with this part number.

Selection Notes

Select this component when a cost-effective, low-power MPU is required for applications needing moderate performance without GPU acceleration. It is suitable for designs prioritizing I/O versatility and security over high-speed graphics processing. Compare against the MCIMX6UL-EVK evaluation kit for development reference. Consider thermal management solutions appropriate for the MAPBGA-289 package within the specified operating temperature range.

Part Context

This microprocessor belongs to the i.MX 6ULL family, designed for entry-level Linux and bare-metal applications. It shares architectural similarities with other i.MX6 processors but focuses on reducing bill-of-materials costs while maintaining industrial-grade reliability. The device integrates essential peripherals for connected IoT and automation endpoints.

Replacement Considerations

Direct substitute: MCIMX6G3DVM05AB. Verify functional equivalence and updated manufacturing status before substitution.
